Product Details
Place of Origin: China Dongguan
Brand Name: YUSHUNLI
Certification: CE
Model Number: YSVC-3
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD1000~4000
Packaging Details: plywooden case
Delivery Time: 5-7work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200Sets/Month
Dimension: |
780x500x620mm（L*W*H) |
Suitable PCB Length: |
No Limited |
Blades Length: |
330mm |
Cutting Speed: |
300~500mm/s |
Cutting Thickness: |
0.5-5.0mm |
Voltage: |
220 V/50HZ Or 110V |
Blade Material:: |
SKH-9 HSS |
Platform 1.2M: |
Options |
Max Component Height: |
70 Mm |
Dimension: |
780x500x620mm（L*W*H) |
Suitable PCB Length: |
No Limited |
Blades Length: |
330mm |
Cutting Speed: |
300~500mm/s |
Cutting Thickness: |
0.5-5.0mm |
Voltage: |
220 V/50HZ Or 110V |
Blade Material:: |
SKH-9 HSS |
Platform 1.2M: |
Options |
Max Component Height: |
70 Mm |

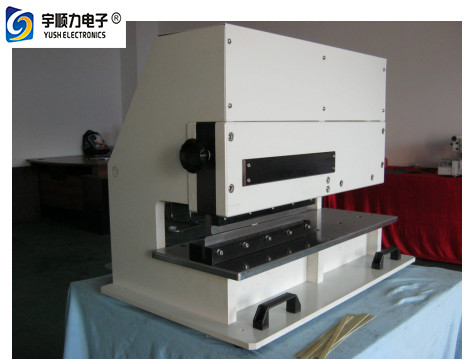

0.5-0.7Mpa SKH-9 HSS PCB Separator For MCPCB Board , PCB/ FR4 Boards ,LED Alum Metal Board
Features
1. Cut any length MCPCB board , PCB/ FR4 boards ,LED alum metal board more safety and easily.
2. Separates long boards directly,without turn direction .
3. Separates boards up to 5.0mm thick Metal Board .
4. Shears boards safely with parts as close as 1 mm to the V score line,including ceramic capacitors.
5. Operator foolproof ! Panels cannot be inserted into the knives except on the score line.
6. Handles high components up to50mm;
7. Bow waves that can occur with round knives are avoided.
8. Easy adjusting of distance between knives
9. The machine was designed to depanel pre-scored PCB carefully, without bending and tension stress.
10. Even sensitive SMD-Components like ceramic capacitors, will not be damaged by the depaneling process, or thin board even to 0.3mm can be worked safely
11. Depaneling process without vibrations.
12. PCB depaneling control method is by pneumatic-driven and electromagnetic valve.
13. PCB control operation is that operator stamps the foot pedal to depanel PCB.
14. Highest components near the v groove of PCB can be up to 50mm.
15. Gap for insertion of PCB can be easy to adjust.
| YSVC-3 Specifications | |
| Model | YSVC-3 |
| Dimension | 780x500x620mm(L*W*H) |
| Suitable PCB Length | No limited |
| Blades Length | 330mm |
| Cutting speed | 300~500mm/s. |
| Cutting thickness | 0.5-5.0mm |
| Minimum component distance from v-groove | 1mm |
| Voltage | 220 V/50HZ or 110V |
| Blade material: | SKH-9 HSS |
| Platform 1.2M | Options |
| Max component height | 70 mm |
| Working air pressure: | 0.5-0.7Mpa; |
| Machine weight | 220 kg |
| Machine Warranty period | 2 year |
