Pneumatic PCB Cutting Machine / Pcb Cutter Machine With High Speed Steel Blades

Pneumatic PCB Cutting Machine / Pcb Cutter Machine With High Speed Steel Blades
Pneumatic PCB Cutting Machine / Pcb Cutter Machine With High Speed Steel Blades Pneumatic PCB Cutting Machine / Pcb Cutter Machine With High Speed Steel Blades

Large Image :  Pneumatic PCB Cutting Machine / Pcb Cutter Machine With High Speed Steel Blades

Product Details:
Place of Origin: China
Brand Name: Yushun
Certification: CE
Model Number: YSVC-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1
Packaging Details: plywood case (international standard)
Delivery Time: 5 work days
Payment Terms: T/T, Western Union
Supply Ability: 80 sets/ month

Pneumatic PCB Cutting Machine / Pcb Cutter Machine With High Speed Steel Blades

Description
Material For The Blades: High Speed Steel Blades Shape: Two Linear Baldes
Warranty: Free For One Year Cutting Length: Unlimited
Cutting Thickness: 0.3-3.5mm Packing: Plywood Case
High Light:

v cut machine

,

v groove cutting machine

Pneumatic PCB Separator Separation MCPCB With High Speed Steel Blades
High Strength Cutting Unlimit Depanel YS-VC3 Supplier In China

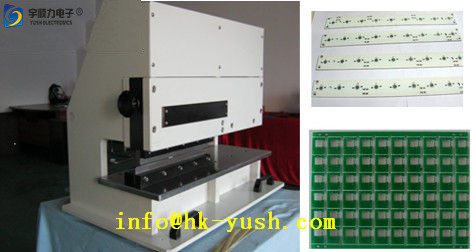

PCB Sparation Machine Diagram:

Unlimit pcb depaneler supplier in China
1.Cutting any length
2.Easy blade adjusting
3.Protecting PCB board
4.Safety protecting hand





Specification for pcb separation:



Model YSVC-3
PCB Cutting Length (mm) unlimited
Cutting Thickness (mm) 0.3~3.5
Pcb separator Machine Weight (Kg) 185
pcb separator machine Size (mm) 780*500*620
working area (mm) 330*220
Power Supply (V) 110/220
Blade Working life for metal (Year/Cutting times) 1~2/0.8~1.55 million
Blade Working life for PCB (Year/Cutting times) 2.5~3/2.5 million
Blade Hardness (HRC) 60~63
Blade Hardness (HB) 540~567
Guarantee (Year) 1
Delivery (Day) 1
Min. Order (Set) 1
Ability (Set) 1000







Detailed Product Description:


1. For electronics, cell phones, computers, PCB, FPC (flexible printed
circuit board),LED.

2. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job!!!! Dedicated

to high strength cutting, and excellent toughness, able to cut metal board !!!!!!





Technical characteristics :


1. Structural precision, the load evenly, to eliminate internal stress

2. Safe, easy to operate

3. For electronics, cell phones, computers, PCB, FPC (flexible printed
circuit board)





Pcb separator Features:



1.Cut any length metal board more safety and easily.

2.Separates long boards directly, without turn direction .

3.Separates boards up to 2.0mm thick Metal Board

4.Shears boards safely with parts as close as 1 mm to the
score line, including ceramic capacitors

5.Operator foolproof! Panels cannot be inserted into the
knives except on the score line

6.Handles high components up to50mm

7.Bow waves that can occur with round knives are avoided

8.Easy adjusting of distance between knives
