High Quality G6060 SMT Laser Template Cutting Machine

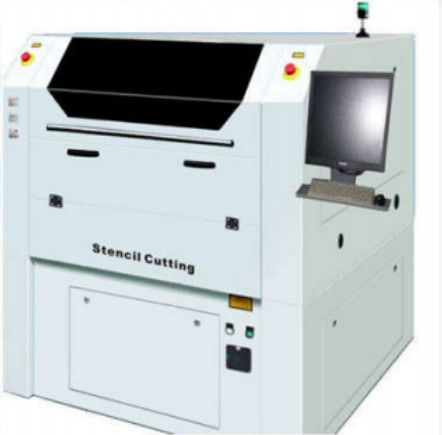

G6060 SMT Laser template cutting machine
YS-GW100W is Yush's new generation of SMT laser template cutting machine.There is a significant improvement in both performance and user-friendly operation design which compared with the previous models.According to market demand The overall performance of the machine has been upgraded to a new level.While improving the cutting speed,also guarantees its excellent cutting quality.Performance is comparable to imported equipment, and the cost performance is much higher than imported machines.
Description:
1.It use iron core linear motor and double driver structure, large thrust, maximum acceleration can reach
2.0G, ensuring precise movement of machine under high speed.
2.Imported IPG fiber laser, stable output power, long life, maintenance-free, smooth hole processing,
and ensure the stability of the processing process.
3.Using imported drives from the US, high-end adjustment and tuning algorithms greatly improve cutting
performance and ensure machining accuracy
4.The whole machine uses natural marble as the base structure, which is safe and stable.
5.Equipped with a high-precision grating full-closed loop system for real-time feedback to reduce
repetitive positioning errors.
6.Low energy consumption, the power consumption of the whole machine is about 2.5KW/h.
Specification:
| Model |
YS-GW 300
|
YS-GW 100W
|
|
Laser power
|
50W/100W/200W
|
50W/100W/200W
|
|
Wavelength
|
1070nm
|
|
Beam quality
|
M²<1.1
|
|
Working area
|
600mm*600mm
|
650mm*650mm
|
|
Clamping size
|
650mm*720mm
|
650mm*720mm
|
|
Cutting thickness
|
0.3mm
|
1.0mm
|
|
Cutting speed)pad/h
|
≈19200
|
≈24000 |
|
Overall dimension
|
1640mm*1380mm*1500mm
|
|
Weight
|
≈2200Kg |
|
Positioning accuracy
|
±2 μ
|
|
Repeated positioning accuracy
|
±2 μ
|
|
Supply voltage
|
220V
|
|
Power consumption
|
<2KW
|
|
Upper computer
|
Adavantech
|
|
Operating software
|
SmartCut
|
|
Cut document
|
LMD ,CNC ,DXF
|
|
Auxiliary cutting gas
|
(Oxygen)8-10Kg,(Compressed air)16Kg
|
|
Main material
|
savageness granite
|
SMT steel mesh cutting
Conventional SMT stencil cutting, based on high precision, high cutting speed and high stability, the G6060 series can reach 15000 holes per hour under the premise of ensuring cutting quality.
SMT IC cutting
The IC part of the conventional SMT cutting is magnified 100 times, which mainly reflects the performance of the machine cutting arc and straight line.
Microporous technology
The micro-hole technology is to quickly punch 0.02-0.06mm very small holes on the steel mesh, and the punching speed can reach 80,000 holes per hour (about 50,000-100,000 micropores in the area of the picture), which is mainly used in the screen processing industry.
