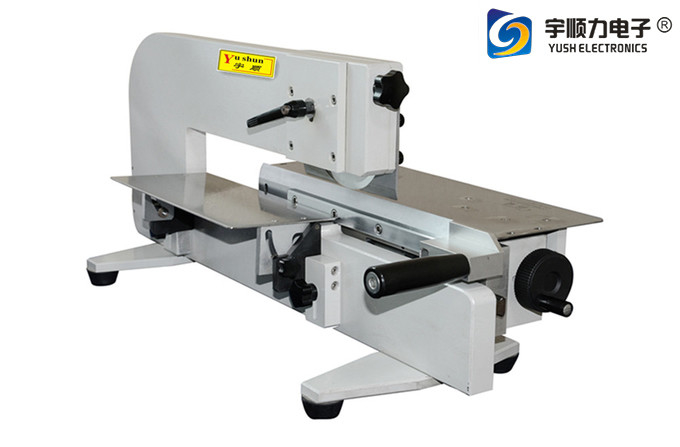

V Cut PCB Circuit Board Cutter Manual For Cutting Metal Board

V Cut PCB Circuit Board Cutter Manual For Cutting Metal Board

  • High Light

    v scoring machine

    ,

    pcb depanelizer

  • Place of Origin
    JiangSu
  • Brand Name
    YUSH
  • Certification
    CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
  • Model Number
    YSV-2M
  • Minimum Order Quantity
    1
  • Price
    1000
  • Packaging Details
    Plywooden case
  • Delivery Time
    3 days
  • Payment Terms
    T/T ,Paypal ,West Union ,L/C ,D/P .
  • Supply Ability
    300 sets/ month

V Cut PCB Circuit Board Cutter Manual For Cutting Metal Board

V Cut PCB Circuit Board Cutter Manual For Cutting Metal Board



Pcb Separator Specification:



Model No.: YSV-2M
Machine Dimension: 342 x 378 x 806 mm
Maximum Length of Cutting: 350 mm
Cutting Speed: 0-400mm / s
Cutting Thickness: 1.0-3.5mm
Voltage: Manual
Weight: 40kg



V Cut PCB Circuit Board Cutter Manual For Cutting Metal Board 0



Pcb Separator Feature:



1. Working tips: PCB remain one position, move blade. this will avoid component damage



2. Hand control the moving rate



3. Accuracy distance adjusting between upper and lower blade



4. Customized cutting length is available, up to 610mm



5. Normally the blades can be used 1 year



6. Accessories are available for purchase



Pcb Separator Application:



1.Aluminum base board



2.Copper substrate



3.FR4



4. Glass fiber board



Pcb Separator Maintenance:



1. Take off the power botton and clean the machine after finish working


2. Be careful to protect the upper and lower blade


3. Move the blades and protect them with machine oil


4. Check the screw fastening time to time


Pcb Separator Delivery:



By air / sea / Fedex / DHL / UPS
Our forwarder partner or yours
Packing with wooden case
Packing fee: USD50 / pc



V Cut PCB Circuit Board Cutter Manual For Cutting Metal Board 1
