|Machine Size:||L820*W740*H1750mm||Working Air Pressure:||0.50-0.70MPA Dry Air Supply|
|Punch Speed:||8～15s Can Adjustable（except Put Boards And Pickup Time）||Work Noise:||≤60dB|
pcb drilling machine,
FPC Punching Machine Punching Numerous type of models and PCB
FPC Punching Machine
Numerous type of models :YSPE80T, YSPE10T and so on.
1,Machine size: L820*W740*L1750mm
2,Output: 3T / 8T / 10T
3,Cylinder return Opening Force:: 1.5T 4T 5T
4,Working pressure:0.50-0.70Mpa Dry air supply
6,Power Supply: 220VAC
7,Punch Speed: 8～15s Can adjustable(Not include put boards and pickup time)
8,Work Table: ≥60mm
9,Work Noise: ≤60dB
10,Working Accuracy: ±0.05mm
11,Machine Weight: 580kg

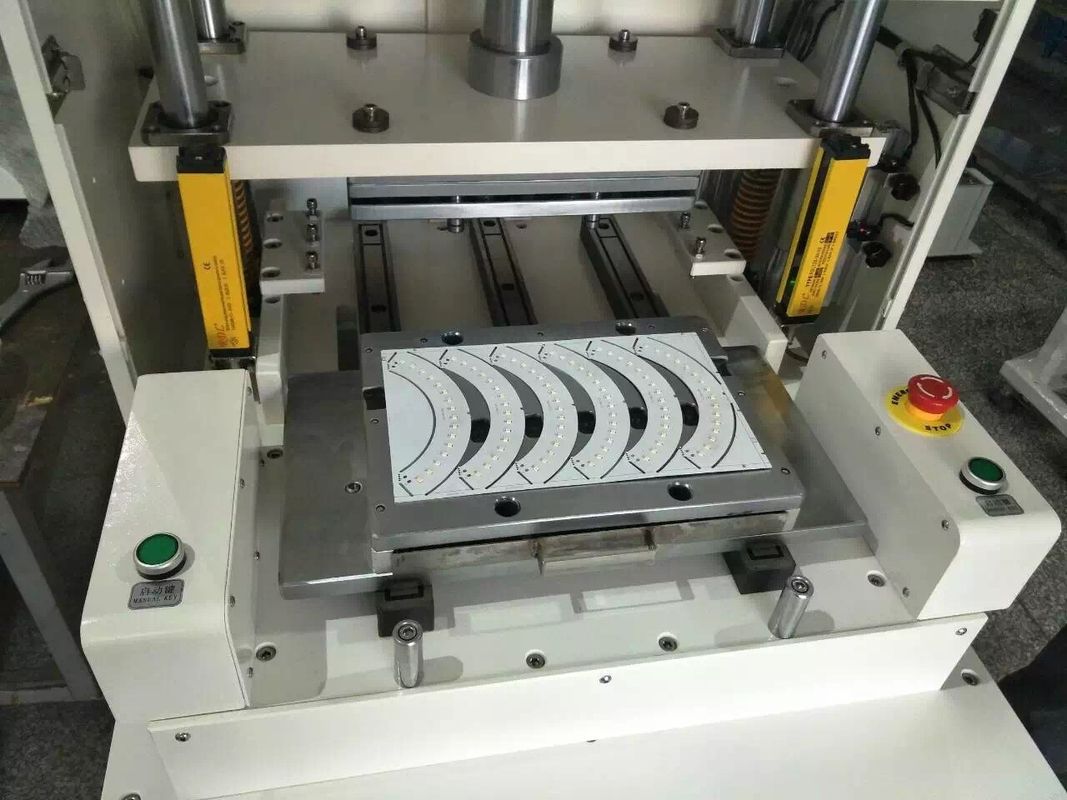

1,PCBA Punch Machine is punch mold machine .
2,Equipment, compact structure, solid body, cylinder bore 125,160,200 AirTAC.
3,Equipment running smoothly, low vibration, low noise.
4,English touch screen display, clear panel, alarm function showed abnormal warning glance.
5,Machine generality. Can replace a variety of mold and die change quick and easy.
6.1. Double switch start operation.
6.2. Device configuration mode and out of the chute, and out of the lower mold automatic pick
and place convenient and safe products.
6.3. Set the emergency stop switch, identify problems and timely shutdown.
6.4. Set security doors, installation and commissioning of the mold to avoid straying hands.
(Normal operation without security door does not work) .
6.5. Set security door grating sensing device, placed in the wrong plate on the mold of the
injection device can sense the mistakes, the mold can not enter.
6.6. Safety pressure setting function, limit alarm. Automatic counting, limit downtime.
7,The internal stress generated when the cutting board to a minimum and to avoid cracking of tin.
8,Punching semi-finished PCB, FPC high efficiency.
