Electronic Printed Circuit Board PCB Depaneling Machine With Large Stainless Steel Platform

Product Details

Place of Origin: Jiansu

Brand Name: YUSH

Certification: CE

Model Number: YSV-1M

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood case

Delivery Time: 3 days

Payment Terms: Western Union, L/C, T/T

Supply Ability: 300 sets/ month

Get Best Price
High Light:

pcb depanelizer

,

pcb depaneling equipment

Electronic Printed Circuit Board PCB Depaneling Machine With Large Stainless Steel Platform
Detailed Product Description


Aluminium depanel pcb maestro 3e depanel meaning With One Day Lead Time


Manual linear&circular blade depaneling (YSV-2M)



Model: YSV-2M


The Longest Minimize: 330mm


Size: 730mm X 280mm X 340mm


Minimize thickness: 0.6-3.5mm


Machine Weight: 50kg


Power supplt: Manual



1.linear knife, manually cutting against up circular knife,for reduce stress.


2.eparate pre-scored PCB assembly without stress on either PCB or component .


3.Separating speed is adjusted by a rotary knob "


4.Handle Intermittent scoring or cut-outs


5.Board with projected component can be cut precisely "


6.Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle."


7.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out ."

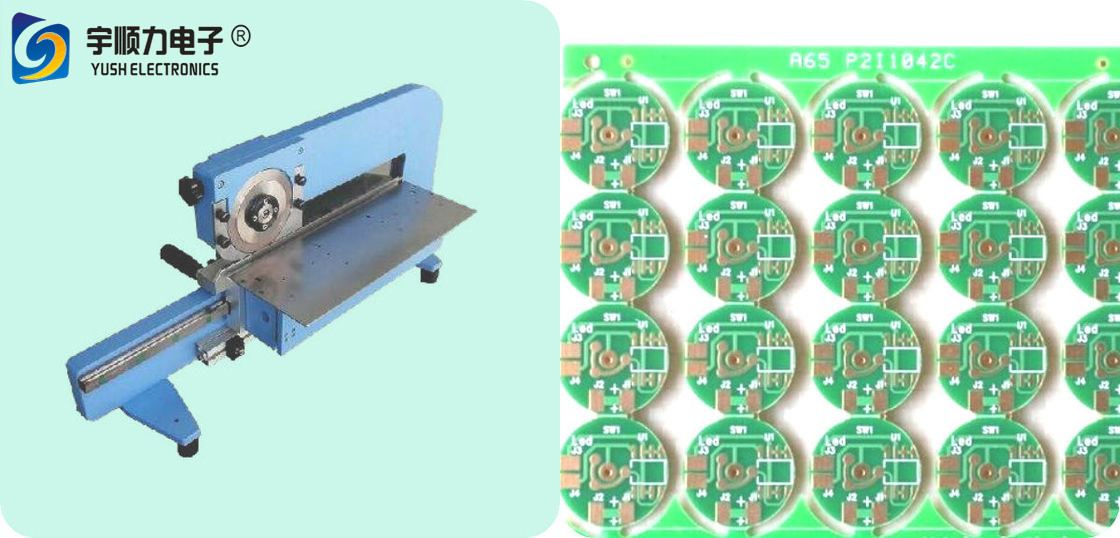

Electronic Printed Circuit Board PCB Depaneling Machine With Large Stainless Steel Platform 0



Aluminium depanel pcb maestro 3e depanel meaning With One Day Lead Time features:


1.Use upper circular blade and bottom linear blade.


2.Cut pre-scored v groove PCB without stress on either PCB or component.


3.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.


4.Blades can be re-grinded to use.



Electronic Printed Circuit Board PCB Depaneling Machine With Large Stainless Steel Platform 1
