Product Details
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: YS-3010
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD 1
Packaging Details: plywood cable
Delivery Time: 5 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/ month
Voltage: |
380V |
Warranty: |
Free For One Year |
Power: |
2200 |
Barrel Capacity: |
60L |
Cable Length: |
5M |
Name: |
Vacuum Cleaner |
Voltage: |
380V |
Warranty: |
Free For One Year |
Power: |
2200 |
Barrel Capacity: |
60L |
Cable Length: |
5M |
Name: |
Vacuum Cleaner |

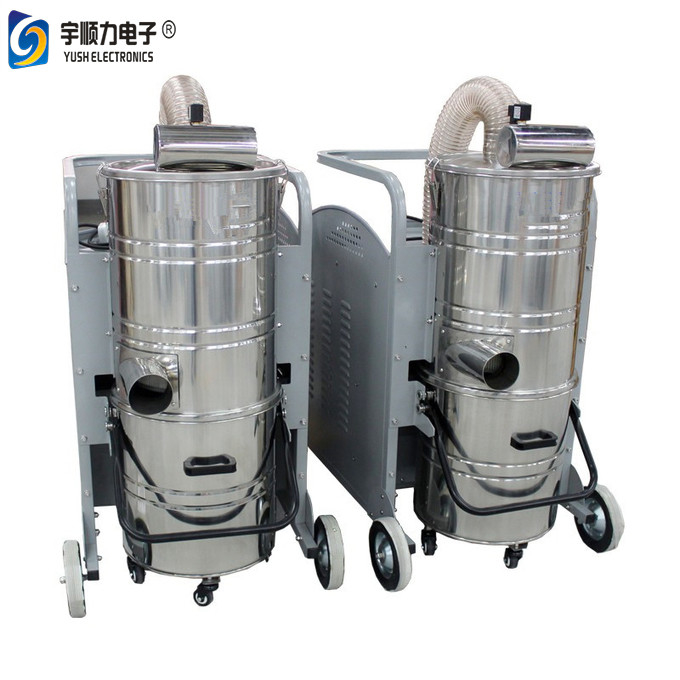

High Efficiency Vacuum Cleaner Work 24 Hours Continuously
Characteristic for Vacuum Cleaner :
1, Three‐phase electric, can work 24 hours continuously.
2, Stainless steel and metal frame.
3, Configuration of Europe type plug socket.
4, Manual filter shaker.
5, Cyclone separation structure reduce the dust filter.
6, Separated barrel for easy to carry.
7, Suitable for all walks of life.
8, Equipped with filtration accuracy of 3um, 99.99% star filters
| Technical specification | Unit | YS2260 | YS3010 |
| Voltage | V | 380 | 380 |
| Power | W | 2200 | 3000 |
| Barrel Capacity | L | 60 | 60 |
| Inhalation Caliber | mm | 50 | 50 |
| Filtering accuracy | UM | 3 | 3 |
| Main Filter area | CM2 | 22000 | 22000 |
| Air flow | M3/H | 310 | 380 |
| Noise | DB | 63 | 68 |
| Vacumm Suction | MBAR | 230 | 250 |
| Cable length | MBAR | 230 | 250 |
| Weight | KG | 83 | 95 |
| Dimensions | MM | 900*600*1100 |
| Technical parameters: | ||
| Technical Specification | Unit | YS3010 |
| Voltage | V | 380 |
| Power | W | 3000 |
| Barrel capacity | L | 100 |
| Inhalation caliber | MM | 50 |
| Filtering accuracy | UM | 3 |
| Main filter area | CM2 | 25000 |
| Air flow | M3/H | 380 |
| Noise | DB | 70 |
| Vacuum suction | MBAR | 320 |
| Cable length | M | 280 |
| Net Weight | KG | 106 |
| Gross Weight | KG | 128 |
| Product Size | MM | 1040*640*1260 |
| Packing Size | MM |
1105*705*1330 |
[Product Characters]:
Special Characters: Impulse Counter-blowing to clean the filter automatic, time relay to control the time of clean the flter.
1.Configuration of Europe type plug socket.
2.HEPA(High Efficient Particulate Air) has big filter area, high filtration precision and the equivalent diameter in 3 microns particle filtration efficiency of more than 99.99%.
3. Pressure relief valve, when the motor reaches the peak value of the motor, the motor load increases, the current becomes large. Pressure relief valve automatically open (air from the pressure relief valve inlet into the motor), protect the motor from load increase.
4.Barometer, can control the load of the machine.
5.Manual filter shaker can remove star dust quickly on the surface of the filter, keeping the biggest suction vacuum;
6.Separated barrel is easy to dump.
7.Three-phase electric, independent industrial-grade turbocharged vacuum pump, in line with UL&CE and other international certification.
8.Cyclone separation structure reduce the dust filter.
9.5 meters 50 mm large diameter tube can absorb large particles and can work over a long distance.
[Customs Option]:
According customers’ requirements, we are equipped with a 3 kw 100 litres, 4 100 kw , 5.5 kw 100 litres and 7.5kw 100 litres of various models, with a strong suction and large capacity. 25000 square centimeters of the filtration system apply to all types of cleaning work very heavy factories;
[ Product Application ]:
YS3010 Can absorb: nails, iron, steel, gravel, sand, cement dust, solid-liquid mixture and a small amount of liquid or viscous substances such as: machinery manufacturing, metal processing, electronics, ceramics, chemicals, food, medicine and other kinds of processing sites.
