Product Details
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: YS-3525
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD 1 -9999
Packaging Details: plywood case
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 800 sets/month
Dimension: |
1430*800*1600mm |
Moving Type:: |
Magazine Loader |
Rated Load:: |
50KGS |
Voltage:: |
110V/220V |
After-sales Service Provided:: |
Engineers Available To Service Machinery Overseas |
Warranyt: |
Free For One Year |
Dimension: |
1430*800*1600mm |
Moving Type:: |
Magazine Loader |
Rated Load:: |
50KGS |
Voltage:: |
110V/220V |
After-sales Service Provided:: |
Engineers Available To Service Machinery Overseas |
Warranyt: |
Free For One Year |
1.SMT PCB loader;
2.PLC control;
3.CE;
4.cheap;
5.all are in English.

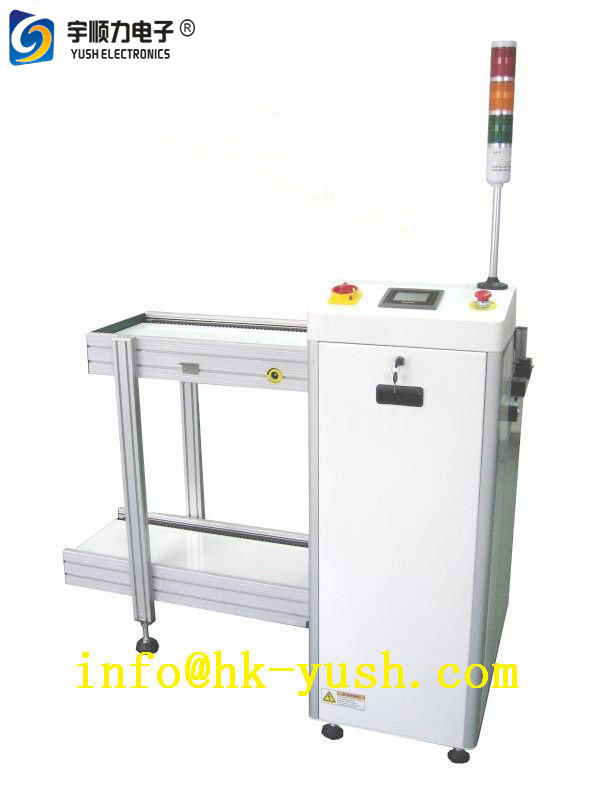

Hot Sale SMT PCB Loader In SMT Mmachines Factory Magazine Loader Features :
1, Reliable and stable of the controlling is equipped with Micro-computer.
2, LCD monitor with user-friendly control mode is easily to operation.
3, Multi function sound and Light Alarm of standard PCB magazine.
4,The pitch of the PCBs is available adjusted according to the components height of board.
5, The board pusher is onboard with the Unloader machine.
6, Equipped with PCBs auto-counter is easily for statistical.
7, Available to communications with other devices by SMEMA plug outlet.
| MODEL | YS-3525 |
| Outer dimension | L1430*W800*H1600mm |
| Magazine size | 355*320*563mm |
| PCB Size | 350*50~250mm |
| Air supply | 5kgf |
| Power voltage | AC220V 50/60Hz |
| PCB Thickness | 0.4~8mm |
| Transport direction | L-R / R-L |
| Repeatability | 0.05mm |
| Weight | Approx.220KGS |
Application for Hot Sale SMT PCB Loader In SMT Mmachines Factory Magazine Loader :
Loader + Automatic solder paste printer;
Loader + Automatic AOI ;
Loader + Reflow oven;
Loader + Automatic AI machine.
