Product Details
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: YS-3525
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD1-9999
Packaging Details: plywood case
Delivery Time: 5 work days
Payment Terms: T/T, Western Union
Supply Ability: 600 sets/month
Type: |
PCB Unloader |
Dimension(Long * Breadth * High):: |
1430*800*1600mm |
After-sales Service Provided:: |
Engineers Available To Service Machinery Overseas |
Voltage:: |
110V/220V |
Warranty: |
Free For One Year |
Guide Rail: |
L-R Or R-L |
Type: |
PCB Unloader |
Dimension(Long * Breadth * High):: |
1430*800*1600mm |
After-sales Service Provided:: |
Engineers Available To Service Machinery Overseas |
Voltage:: |
110V/220V |
Warranty: |
Free For One Year |
Guide Rail: |
L-R Or R-L |

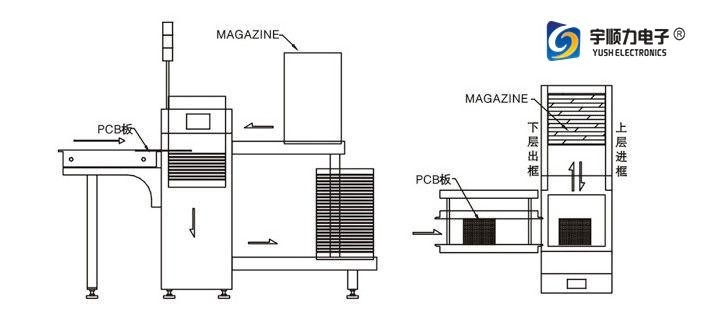

Stable Automatic SMT Unloader In SMT Automatic Production line
1.SMT automatic unloader;
2.PLC control;
3.CE;
4.3 magazines;
5.save the labors.
Features:
1, Reliable and stable of the controlling is equipped with Micro-computer.
2, LCD monitor with user-friendly control mode is easily to operation.
3, Multi function sound and Light Alarm of standard PCB magazine.
4, The pitch of the PCBs is available adjusted according to the components height of board.
5, The board pusher is onboard with the Unloader machine.
6, Available to communications with other devices by SMEMA plug outlet.
Specifications:
| MODEL | YS-3525 | YS-3525A |
| Dimentions | 2000*800*1600(mm) | 2800*1010*1600(mm) |
| Size of PCB Box | 355*320*563(mm) | 535*460*570(mm) |
| PCB size | 350*50-250(mm) | 530*50-390(mm) |
| Power | AC 220V 50/60HZ | |
| Air supply | 5kgf/cm2 | |
| Transport Height | 900±20(mm) | |
| PCB Height | 0.4-8(mm) | |
| Transport Direction | L-R or R-L | |
| Up/down pitches | 10-100(mm) | |
| Repeatability | 0.05(mm) | |
| Weight | Approx. 270Kg | Approx. 340Kg |
