Product Details
Place of Origin: China
Brand Name: YUSH
Certification: Ce certificate
Model Number: YSVC-2
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD1
Packaging Details: plywood case
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union
Supply Ability: 120 sets/ month
Cutting Length: |
200/330/00/450/480mm |
Blades Shape: |
Two Linear Blades |
Material For The Blades: |
High Speed Steel |
Warranty: |
Free For One Year |
Shipping Way: |
EXW/FOB/CIF |
Packing: |
Plywood Case |
Cutting Length: |
200/330/00/450/480mm |
Blades Shape: |
Two Linear Blades |
Material For The Blades: |
High Speed Steel |
Warranty: |
Free For One Year |
Shipping Way: |
EXW/FOB/CIF |
Packing: |
Plywood Case |
1. PCB depaneling machine
2. Pneumatically driven electric control
3. can cut all kind of PCB
4. hight quality
5. lowest cut stre

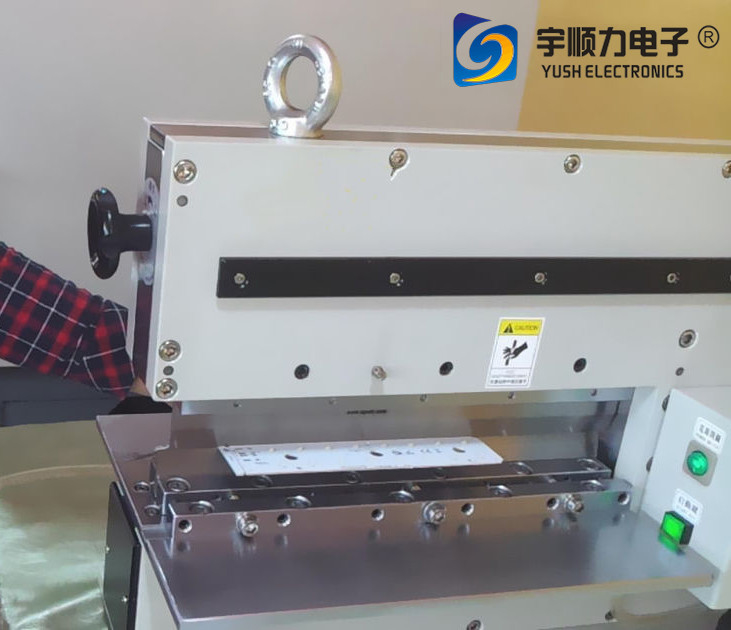

All-purpose V-CUT PCB depaneling machine
Pneumatically driven and electric control
The machine is pneumatically driven and electric control. The straight knife type separator machines were designed to separate pre-scored panel boards carefully, without bending or tension stress. Even
sensitive SMD-components like ceramic capacitors will not be damaged by the separate process. Due to the special design of the knives also boards with high components placed close to the edges can be separated safely. Based on a proven method of separating, wedge-shaped knives are used to cut the panels within the groove. This enables boards of less than 1 mm thickness to be separated safely and without creating stress.
Features for pcb depaneling machine
1, No vibration during the process to prevent damage to precise PCB
2,Gap for insertion of the board can easily be adjusted by means of the adjusting knob in the top side of the machine, low friction design is applied.
3,Lower knife height adjustable, the front and real portion can be adjusted separately. No thin plates are required after re-sharpening the knife.
4,Operation and maintenance can be done also by unskilled personnel
Specification:
Specification
Power Voltage: 90~240VAC
Air pressure: 5Kgs/cm2
Output : 12.5 ton(Gross)
Part-Up height: 39mm (max)
Part-Down height : 19mm (max)
Effective length: 350mm,
PCB thickness: 0.1mm~1.0mm (without v-grooved )
Weight : 170kg
Upper blade: 350mm(L)*58mm(W)*7mm(T)
lower blade: 360mm(L)*39mm(W)*7mm(T)
cut running: 350mm
protect times : 200000 times ,can abrade 3-4 times
Machine dimension: 500mm*650mm*1050mm
PCB Board
