Product Details
Place of Origin: JiangSu,China
Brand Name: YUSHUNLI
Certification: CE
Model Number: YSATM-3L
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD5800
Packaging Details: Wooden case
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 100set/ month
Name: |

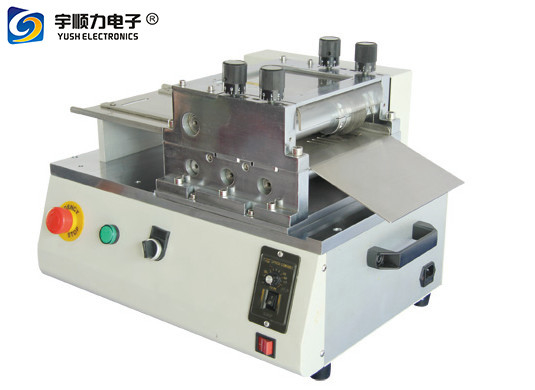

Desktop Multi-group Knife Depaneling Machine |
Working Size:: |
440*430 Mm |
Precision:: |
±20 μm |
Wavelength:: |
355nm |
Laser Brand:: |
USA Or Germany |
Laser Scanning Speed:: |
2900mm/s (max) |
Thickness: |
0.3mm |
Voltage: |
220V/110V |
Cutting Length: |
50mm More |
Power:: |
20W(optional) |
Name: |
Desktop Multi-group Knife Depaneling Machine |
Working Size:: |
440*430 Mm |
Precision:: |
±20 μm |
Wavelength:: |
355nm |
Laser Brand:: |
USA Or Germany |
Laser Scanning Speed:: |
2900mm/s (max) |
Thickness: |
0.3mm |
Voltage: |
220V/110V |
Cutting Length: |
50mm More |
Power:: |
20W(optional) |
440*430mm 20W 0.1~0.5mm thickness PCB FR4 Board Laser Depaneling Machinesteel laser cutter
Features
1, High positioning accuracy.
2, The small cutting stress.
3, Open the door protection device with high safety performance.
4, Automatic feeding and cutting board, higher efficiency.
5, It can be connected to the pcb loader machine, the unloader machine, more labor-saving.
6. (Desktop type) multi-group knife dividing machine, multiple sets of tools running at the same time, splitting the whole piece at a time, greatly improving production efficiency; multiple sets of tool design ensure that the effect of the split plate is not deformed and the product quality is effectively controlled.
7. It can be connected to the pcb loader machine, which can realize automatic board division. Today, the labor cost gradually increases, COB consolidation board machine can save a lot of labor cost for the enterprise.
8. The COB consolidation and depaneling machine is mainly developed for the PCBA electronics industry and the LED lighting industry, in order to meet the demanding requirements of the deformation degree, to achieve the perfect sub-board, the same applies to the LED strips and strips of the aluminum-plastic tube process. Board type such as PCB board.
Specification
| Item | YSATM-3L |
| Name | Desktop multi-group knife depaneling machine |
| DimensionsL/W/H | 610mm×370mm×400mm |
| Blades demension | Round blades ϕ60mm×ϕ35mm×3mm |
| Blades material | Imported high quality high speed steel |
| Blaes barand | Yushunli |
| Thickness | 0.1mm-0.5mm |
| Cutting length | 50mm more |
| Cutting speed | 300mm-500mm/s(Adjustable speed) |
| Cutting width | 4mm-100mm Best(Single piece width),Whole width 250mm |
| Voltage | 220V/110V |
| Machine power | 90W |
| Machine weight | 80kg |
