Product Details
Place of Origin: JiangSu,China
Brand Name: YUSH
Certification: CE
Model Number: YSVJ-650A
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD16000
Packaging Details: Wooden case
Payment Terms: D/P, D/A, L/C, T/T
Supply Ability: 100/ month
Dimension: |
L1300*W400*H1000mm |
Working Voltage: |
110V/220V (can Choose By Yourself) |
Max Cutting Width: |
No Limit |
Machine Weight: |
55kg |
Thickness: |
0.8~3.0mm |
Power: |
200w |
Speed: |
300~500mm/s |
Dimension: |
L1300*W400*H1000mm |
Working Voltage: |
110V/220V (can Choose By Yourself) |
Max Cutting Width: |
No Limit |
Machine Weight: |
55kg |
Thickness: |
0.8~3.0mm |
Power: |
200w |
Speed: |
300~500mm/s |

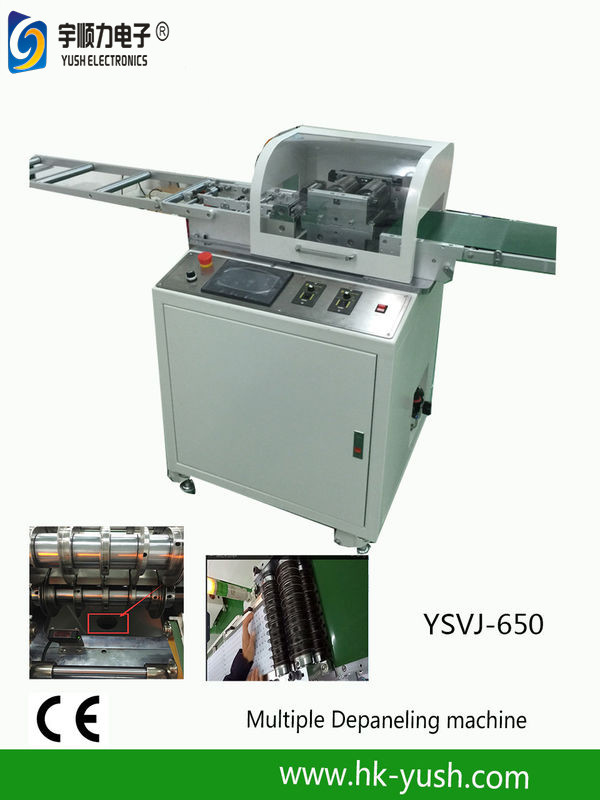

Speed 300~500mm/s / 220V/L1300*W400*H1000 Multi-group multi-tool/PCB Cutter/PCB V-cut machine
1. The shaft of the knives( top and bottom) is design to be an an integral whole, it is convenient to install, pick and place.
2. This machine adopts computer screen control with a counting device which can be preset production. Gap of the cutting tool displayed by the display screen directly.
3. All the v-cut pcb board can be cut by this machine.
4. Using the machine to cut, reduce stress, prevent the solder joint cracking.
5. PCB board is cut by multiple cutters which can cut several board once.
6. The machine top cutter wheel can be slightly adjust:0-5mm.
7. The distance between the knives can be adjusted, and it is suitable to cut single pcb board within width 15-20mm.
8. Blade is made of SKH51 high speed steel with long service life and wear resistance.
9. Cutting speed can be set and conveniently adjusted by turn-knob.
10. Install conveyer belt, pcb board which is cut can be sent out directly, then docking with the next machine and reducing the times of artificial pick and place. This machine can cut LED panel, fiberboard, aluminum board (more than 400mm ) and special board.
Working Voltage:220v
Dimension: L1300*W400*H1000mm
Weight : 50 kg
Process of cutting is unlimited
PBC thickness: 0.8-3.0mm
Applicable board: can cut LED panel, fiberboard, aluminum board (more than 400mm ) and special board.
FAQ
Q: What information should I tell to you?
A: I should know what board you cut and what is your board max size.
