Product Details
Place of Origin: Dongguan China
Brand Name: YUSH
Certification: CE ISO
Model Number: YSVJ-650
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD1500~20000
Packaging Details: plywooden case
Delivery Time: 10-15work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80Sets/Month
Pcb Thickness: |
5mm |
Name: |
PCB Depaneling Machine / V-cut PCB Depanelizer,multi-blade Depaneling Machine,Pcb Separator,Separator Machine |
Usage: |
Copper Pcb,fiber Glass Tube,Cut V Cut Pcb,PCB Board,aluminum Board |
Condition: |
New |
Cutting Speed: |
300mm/sec Or 500mm/sec |
Suitable For: |
V-cut PCB,LED Strip,aluminum PCB |
Total Dimension: |
L2600*W850*H1050mm |
Max Length Of PCB: |
Unlimited |
Separting Width Of Single PCB: |
8-20MM |
Max PCB Width: |
300MM |
Power: |
200w |
Max Component Height: |
30MM |
Pcb Thickness: |
5mm |
Name: |
PCB Depaneling Machine / V-cut PCB Depanelizer,multi-blade Depaneling Machine,Pcb Separator,Separator Machine |
Usage: |
Copper Pcb,fiber Glass Tube,Cut V Cut Pcb,PCB Board,aluminum Board |
Condition: |
New |
Cutting Speed: |
300mm/sec Or 500mm/sec |
Suitable For: |
V-cut PCB,LED Strip,aluminum PCB |
Total Dimension: |
L2600*W850*H1050mm |
Max Length Of PCB: |
Unlimited |
Separting Width Of Single PCB: |
8-20MM |
Max PCB Width: |
300MM |
Power: |
200w |
Max Component Height: |
30MM |
8-20MM 200W SKD11 Blades PCB Depaneling Machine/cnc machine for pcb/pcb v cutter
Descriptions
1. The shaft of the knives( top and bottom) is design to be an an integral whole, it is convenient to install, pick and place.
2. This machine adopts computer screen control with a counting device which can be preset production. Gap of the cutting tool displayed by the display screen directly.
3. All the v-cut pcb board can be cut by this machine.
4. Using the machine to cut, reduce stress, prevent the solder joint cracking.
5. Pcb board is cut by multiple cutters which can cut several board once.
6. The machine top cutter wheel can be slightly adjust:0-5mm.
7. The distance between the knives can be adjusted, and it is suitable to cut single pcb board within width 15-20mm.
8. Blade is made of SKH51 high speed steel with long service life and wear resistance.
9. Cutting speed can be set and conveniently adjusted by turn-knob.
10. Install conveyer belt, pcb board which is cut can be sent out directly, then docking with the next machine and reducing the times of artificial pick and place. This
machine can cut LED panel, fiberboard, aluminum board (more than 400mm ) and special board.

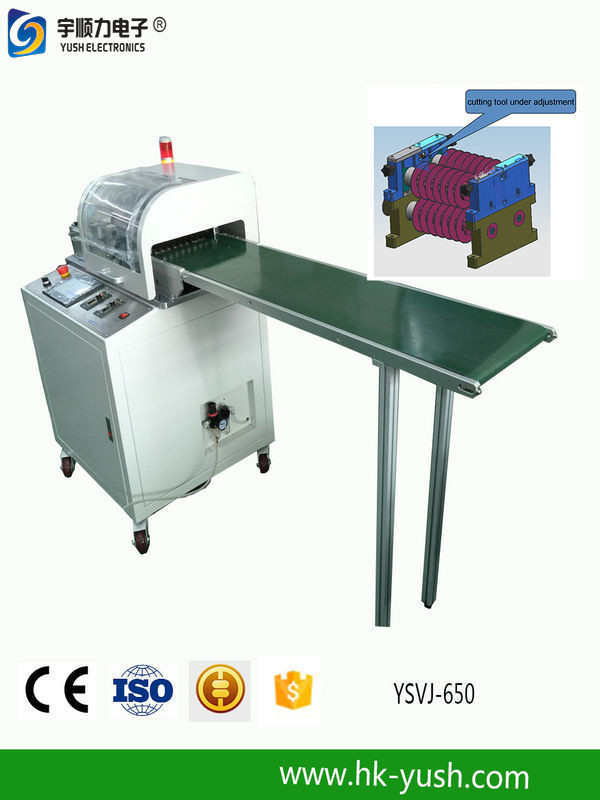

Multiple Groups Of Blades PCB Depaneling YSVJ-650 Machine
The machine is equipped with standard upper and bottom 20 groups of blades which can separate the 10 lines or more LED light bars at same time.all blades are made of endurable SKD11 high speed steel.
