Home > products > PCB Depaneling Machine > Max Width 300MM 200W SKD11 Blades PCB Depaneling Machine

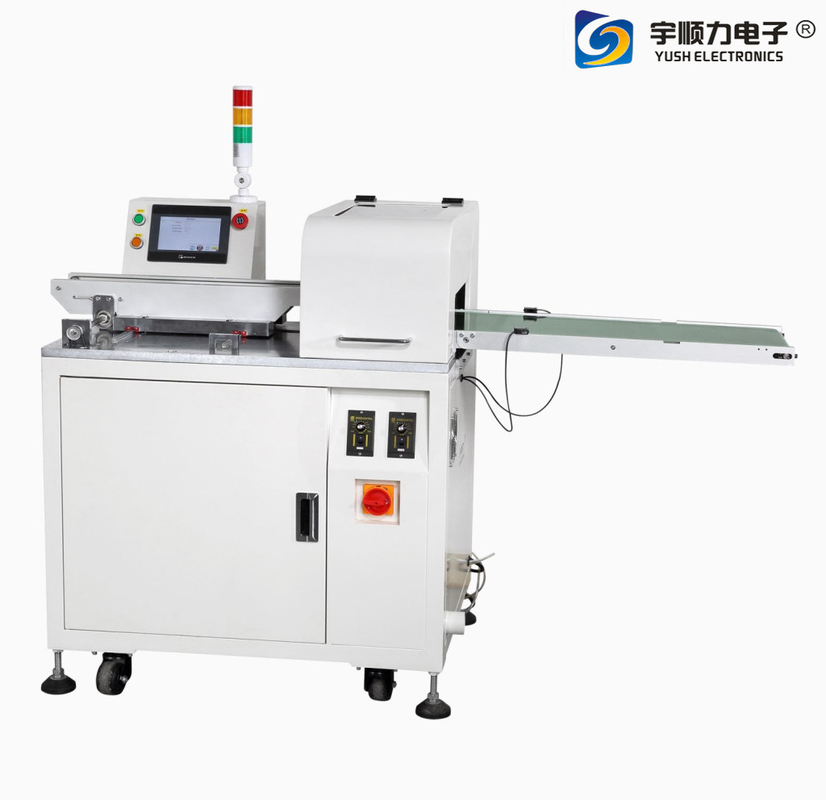

Max Width 300MM 200W SKD11 Blades PCB Depaneling Machine

Product Details

Place of Origin: China Dongguan

Brand Name: YUSH

Certification: CE ISO

Model Number: YSVJ-650

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD1000~20000

Packaging Details: plywooden case

Delivery Time: 10-15work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 80Sets/Month

Get Best Price
High Light:

SKD11 Blades PCB Depaneling Machine

,

300MM PCB Depaneling Machine

,

200w pcb depanelizer

Warranty:
1 Year
Pcb Thickness:
0.3 To 5mm
Name:
High Quality PCB Depaneling Machine / V-cut PCB Depanelizer,multi-blade Depaneling Machine,Pcb Separator,Separator Machine
Usage:
Copper Pcb,fiber Glass Tube,Cut V Cut Pcb,PCB Board,aluminum Board
Condition:
New
Cutting Speed:
300mm/sec Or 500mm/sec
Suitable For:
V-cut PCB,LED Strip,aluminum PCB
Power:
200W
Total Dimension:
L2600*W850*H1050mm
Max Length Of PCB:
Unlimited
Separting Width Of Single PCB:
8-20MM
Max PCB Width:
300MM
Max Component Height:
30MM
Blade Material:
SKD11
Machine Weight:
210 Kg
Warranty:
1 Year
Pcb Thickness:
0.3 To 5mm
Name:
High Quality PCB Depaneling Machine / V-cut PCB Depanelizer,multi-blade Depaneling Machine,Pcb Separator,Separator Machine
Usage:
Copper Pcb,fiber Glass Tube,Cut V Cut Pcb,PCB Board,aluminum Board
Condition:
New
Cutting Speed:
300mm/sec Or 500mm/sec
Suitable For:
V-cut PCB,LED Strip,aluminum PCB
Power:
200W
Total Dimension:
L2600*W850*H1050mm
Max Length Of PCB:
Unlimited
Separting Width Of Single PCB:
8-20MM
Max PCB Width:
300MM
Max Component Height:
30MM
Blade Material:
SKD11
Machine Weight:
210 Kg
Max Width 300MM 200W SKD11 Blades PCB Depaneling Machine

High quality PCB depaneling machine / V-cut PCB depanelizer,multi-blade depaneling machine,Pcb Separator



Feature



1. The shaft of the knives( top and bottom) is design to be an an integral whole, it is convenient to install, pick and place.



2.This machine adopts computer screen control with a counting device which can be preset production. Gap of the cutting tool displayed by the



display screen directly.



3.All the v-cut pcb board can be cut by this machine.



4.Using the machine to cut, reduce stress, prevent the solder joint cracking.



5.Pcb board is cut by multiple cutters which can cut several board once.



6.The machine top cutter wheel can be slightly adjust:0-5mm.



7.The distance between the knives can be adjusted, and it is suitable to cut single pcb board within width 15-20mm.



8.Blade is made of SKH51 high speed steel with long service life and wear resistance.



9.Cutting speed can be set and conveniently adjusted by turn-knob.



10.Install conveyer belt, pcb board which is cut can be sent out directly, then docking with the next machine and reducing the times of artificial



pick and place. This machine can cut LED panel, fiberboard, aluminum board (more than 400mm ) and special board.



11.With several knives, the machine operates simply and efficiently and is suitable for mass production.



Multiple Groups Of Blades PCB Depaneling YSVJ-650 Machine



The machine is equipped with standard upper and bottom 20 groups of blades which can separate the 10 lines or more LED light bars at same



time.all blades are made of endurable SKD11 high speed steel.


PCB clamping and conveying system ensure precise separating without deformation and burrs.

The machine adopts touch screen and PLC control system which can monitor production information,easy to operate.

Full english operation interface , easy to operate.

Max Width 300MM 200W SKD11 Blades PCB Depaneling Machine 0

Features:

● The conveying speed can be adjusted.
● The single separated PCB width is 8-20 mm. Max cutting width 300mm;
● Machine with automatic feeding system;
● Machine is equipped with safety protection device.
● Suitable cutting material of PCB :aluminum ,FR4,glass fiber.
● Equipped with SMEMA connector ,easy to connect with upstream machine
● The machine adopts the touch screen and PLC which can monitor production information.
● MDS-900 is equipped with multiple sets of blades which can separate the whole light bar board one time.
● The distance between upper and lower cutter can be precisely adjusted, the separating thickness of PCB range is : 0.8MM-3.0MM.

Machine video reference URL:

https://youtu.be/czQ03KyM25A
https://www.youtube.com/watch?v=QUnMw7ngzTw

Max Width 300MM 200W SKD11 Blades PCB Depaneling Machine 1

Specifications:

Total Dimension
L2600*W850*H1050mm
Inlet conveying length
850mm
Outlet conveying length
850mm
Separating blades number
20 groups of upper and lower blades , total:40pcs
Max length of PCB
unlimited
PCB Thickness
0.6-5.0mm
Separating PCB bar number at one time
11 LINES
Separting width of single PCB
8-20MM
Max PCB width
300 mm
Max component height
30mm
Blade material
SKD11
Blade average lifespan
1,000,000 times (1.2m long , 3mm thick PCB)
Voltage
220V/50Hz or 110V
Machine weight
210 kg
Power
200W



Max Width 300MM 200W SKD11 Blades PCB Depaneling Machine 2


Multiple Groups Of Blades PCB Depaneling
Standard configuration:
Multiple Groups Of Blades PCB Separator.
40 pcs of blades installed on the machine.
1 year parts warranty



Optional configuration:
SMEMA connector
Circular blade 900*40pcs
Package free.
