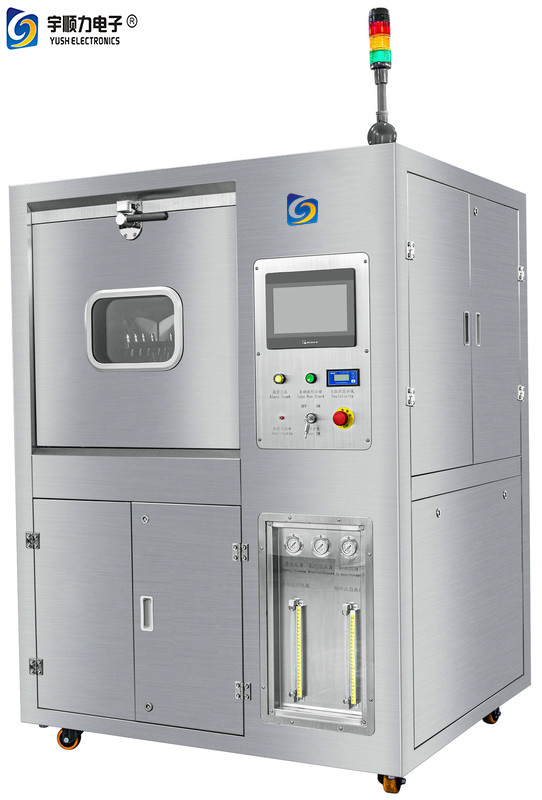

60L Offline PCBA Cleaning Machine For SMT Line

Product Details

Place of Origin: China Dongguan

Brand Name: YUSH

Certification: CE ISO

Model Number: SME-5600

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD1000~4000

Packaging Details: plywooden case

Delivery Time: 10-15work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 80Sets/Month

Get Best Price
High Light:

Offline PCBA Cleaning Machine

,

60L PCBA Cleaning Machine

,

SMT PCBA Cleaning Equipment

Retangle Cleaning Basket:
L610 X W560 X H100(mm)x2 Layers
Liquid Tank Capacity:
60L
Concerntrate Liquid Tank Capacity:
30L
Temporary Tank Capacity:
18L
Clean Time:
10~20min(0~99min Adjustable)
Rinse Time:
1~3min/times(0~10min Adjustanble)
Hot Air Dry Time:
15~30min(0~60min Adjustable)
Cleaning Liquid Temp:
Room Temp~75℃
Rinse DI Water Temp:
Room Temp~75℃
Hot Air Dry Temp:
Room Temp~99℃
Liquid Tank Heater Power:
9KW
Machine Size:
L1300xW1200xH1850(mm)
Machine Weight:
600KG
Key Selling Points:
Easy To Operate,High-accuracy
Retangle Cleaning Basket:
L610 X W560 X H100(mm)x2 Layers
Liquid Tank Capacity:
60L
Concerntrate Liquid Tank Capacity:
30L
Temporary Tank Capacity:
18L
Clean Time:
10~20min(0~99min Adjustable)
Rinse Time:
1~3min/times(0~10min Adjustanble)
Hot Air Dry Time:
15~30min(0~60min Adjustable)
Cleaning Liquid Temp:
Room Temp~75℃
Rinse DI Water Temp:
Room Temp~75℃
Hot Air Dry Temp:
Room Temp~99℃
Liquid Tank Heater Power:
9KW
Machine Size:
L1300xW1200xH1850(mm)
Machine Weight:
600KG
Key Selling Points:
Easy To Operate,High-accuracy
60L Offline PCBA Cleaning Machine For SMT Line

60L PCBA Offline Cleaning Machine For SMT Line For Rosin Flux, No-Clean Flux



SME-5600 PCBA Cleaning Machine Introduction





SME-5600 is an energy-saving, environmental protective, integrated, high-end cleaning machine. It can automatically complete cleaning, rinsing, drying process in one chamber by just push the start key.

SME-5600 main application: Car electronics PCBA, Military PCBA, Aerospace PCBA, Telecom PCBA, Medical device PCBA, Digital meters PCBA.

For Rosin flux, No-clean flux,Water-soluble flux , Solder paste ball and other organic and inorganic pollution materials on SMT and THT PCBA.



60L Offline PCBA Cleaning Machine For SMT Line 060L Offline PCBA Cleaning Machine For SMT Line 160L Offline PCBA Cleaning Machine For SMT Line 260L Offline PCBA Cleaning Machine For SMT Line 3



PCBA Offline Cleaning Machine SME-5600



60L Offline PCBA Cleaning Machine For SMT Line 4

1. SME-5600 Structure

60L Offline PCBA Cleaning Machine For SMT Line 5

3. 3 steps main process

60L Offline PCBA Cleaning Machine For SMT Line 660L Offline PCBA Cleaning Machine For SMT Line 760L Offline PCBA Cleaning Machine For SMT Line 8



                                                   Liquid Clean ---- DI water Rinse ---- Hot air Dry



                            Upper/middle/lower 3pcs, 360° rotation spray rods, 2 layers cleaning baskets



4.Flow chart

60L Offline PCBA Cleaning Machine For SMT Line 9

In general, the cleaning process parameters are: cleaning time (10-20) min, rinse time (1-2) min, rinse times (3-5) times, drying time (20-30) min, cleaning temperature (40 -60) ℃, rinse temperature (room temperature), drying temperature (70-95) ℃, so the general completion of a cleaning process time (40-60) min, under special circumstances according to the actual situation





5.Technical Spec









S/N ITEM SME-5600 SPEC
1 retangle Cleaning basket L610 x W560 x H100(mm)x2 layers
2 liquid tank capacity 60L
3 concerntrate liquid tank capacity 30L
4 temporary tank capacity 18L
5 clean time 10~20min(0~99min adjustable)
6 rinse time 1~3min/times(0~10min adjustanble)
7 hot air dry time 15~30min(0~60min adjustable)
8 rinse times 3~5times(1~59 times adjustable)
9 cleaning liquid temp room temp~75℃
10 rinse DI water temp room temp~75℃
11 hot air dry temp room temp~99℃
12 liquid tank heater power 9KW
S/N ITEM SME-5600 SPEC
13 temporary tank heater power 6KW
14 Hot air heater power 7.5KW
15 Resistivity range 0~18MΩ
16 electric pump 4.0KW
17 air pump 1 Inch
18 liquid Spray pressure 0~5kgf/cm2
19 liquid filter 0.2um
20 DI water filter 0.2um
21 Air vent size φ100XH30(mm)
22 Power/air supply AC380V,50/60HZ,65A /0.5~0.7Mpa,200~400L/Min
23 Machine size L1300xW1200xH1850(mm)
24 Machine weight 600KG







6-1. Features





1. the whole process visible : the cleaning process can be visible through the front window and LED light.

2. automatic cleaning mode: clean, rinse, dry process can complete in one compact machine.

3. the most scientific nozzle design: the use of left and right incremental arrangement --- to enhance cleaning efficiency,back and forth movement of basket - completely solve the cleaning blind area;

4. the nozzle pressure adjustable design: to solve the small and light PCBA in the high pressure spray under the conditions of the collision, splash problem;

5. the standard dilution tank heating system: greatly improve the cleaning efficiency. Shorten the cleaning time;

6. a comprehensive cleaning system: for SMT; THT PCBA after welding the surface of the residual rosin, water-soluble flux, no-clean flux / solder paste and other organic and inorganic pollutants for thorough and effective cleaning;

7. convenient cleaning dilution to add: can be manually added, but also by setting the ratio (5% to 25%) automatically with DI water and chemical liquid (option);
