0.05mm Accuracy PCB Punching Machine For FPC Board

Product Details

Place of Origin: China Dongguan

Brand Name: YUSHUNLI

Certification: CE ISO

Model Number: YSPL

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD1000~20000

Packaging Details: plywooden case

Delivery Time: 10-15work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 80Sets/Month

Get Best Price
High Light:

0.05mm Accuracy PCB Punching Machine

,

FPC Board PCB Punching Machine

,

220VAC PCB Separator

Condition:
New
Warranty:
1 Year
Voltage:
220V
Certification:
CE ISO,CE Certificate
Power Source:
Hydraulic,Pneumatic
Application:
FR4 Substrate Cutting,aluminum Substrate
Keyword:
Punching Press
Machinesize::
930×880×1750mm
Output:
3T/8T/10T
Working Area:
330×220mm
WorkNoise:
≤60dB
WorkingAccuracy:
±0.05mm
Condition:
New
Warranty:
1 Year
Voltage:
220V
Certification:
CE ISO,CE Certificate
Power Source:
Hydraulic,Pneumatic
Application:
FR4 Substrate Cutting,aluminum Substrate
Keyword:
Punching Press
Machinesize::
930×880×1750mm
Output:
3T/8T/10T
Working Area:
330×220mm
WorkNoise:
≤60dB
WorkingAccuracy:
±0.05mm

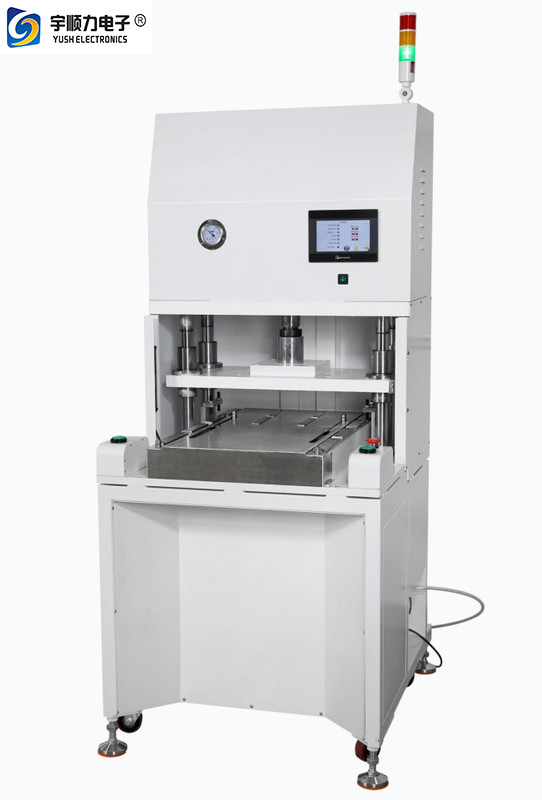

0.05mm Accuracy PCB Punching Machine For FPC Board

330×220mm 930×880×1750mm PCB/FPC/LED Punching Machine





YSPE PCB/FPC Punching Machine Feature:
1,PCBA Punch Machine is punch mold machine.
2,Equipment,compact structure,solid body,cylinder bore125,160,200AirTAC.
3,Equipment running smoothly,low vibration,low noise.
4,English touch screen display,clear panel,alarm function showed abnormal warning glance.
5,Machine generality.Can replace a variety of mold and die change quick and easy

6,DeviceSecurity:
6.1.Double switch start operation.
6.2.Device configuration mode and out of the chute,and out of the lower mold automatic pick and place convenient and safe products.
6.3.Set the emergency stop switch,identify problems and timely shutdown.
6.4.Set security doors,installation and commissioning of the mold to avoid straying hands.(Normal operation with out security door doesnot work).
6.5.Set security door grating sensing device,placed in the wrong plate on the mold of the injection device can sense the mistakes,the mold cannot enter.
6.6.Safety pressure setting function,limit alarm.Automatic counting,limit down time.
7,The internal stress generated when the cutting board to a minimum and to avoid cracking of tin.
8,Punching semi-finished PCB,FPC high efficiency.

Machine specifications:
Machine size: 930×880×1750mm
Output 3T/8T/10T
Cylinder return Opening Force 1.5T 4T 5T
Working pressure 0.50-0.70Mpa Dry air supply
Working Area 330×220mm
Power 220VAC
Punch Speed: 815s Can adjustable(Not include put boards and pickup time)
work plan ≥60mm
Work Noise ≤60dB
WorkingAccuracy: ±0.05mm
Machine weight 680kg





0.05mm Accuracy PCB Punching Machine For FPC Board 0

0.05mm Accuracy PCB Punching Machine For FPC Board 1

0.05mm Accuracy PCB Punching Machine For FPC Board 2

0.05mm Accuracy PCB Punching Machine For FPC Board 3



Customized small punch machine



0.05mm Accuracy PCB Punching Machine For FPC Board 4



Aluminum PCB Punching Machine Exporters - YSPE

1.Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual.
2.Cast iron framework for rigidity. Punching dies are changeable. Easy set up of punching dies.
3.Moveable lower die for easy loading and unloadingPCB punch die| FPC die| PCB punch mold| FPC mould

features: 1. high degree of automation, simple operation and safety


2. can replace a variety of mold, and mold changing easily
3. the lower mold automatic in and out, easy to pick and place products, finished products can fall into the drawer
4. make internal stress generated by PCB singulation press to minimize and avoid stress cracking of tin
5. punching singulation semi-finished PCB, FPC with more high efficiency

6. mold and die can be made according to customer's requests



Punching mold PCB singulation machine
1. high degree of automation,high efficiency,simple operation
2. can replace multiple mold for production and mold changing easily
3. apply to cut rigid pcb,flexible pcb(FPC),rigid-flexible pcb


0.05mm Accuracy PCB Punching Machine For FPC Board 5
0.05mm Accuracy PCB Punching Machine For FPC Board 6
