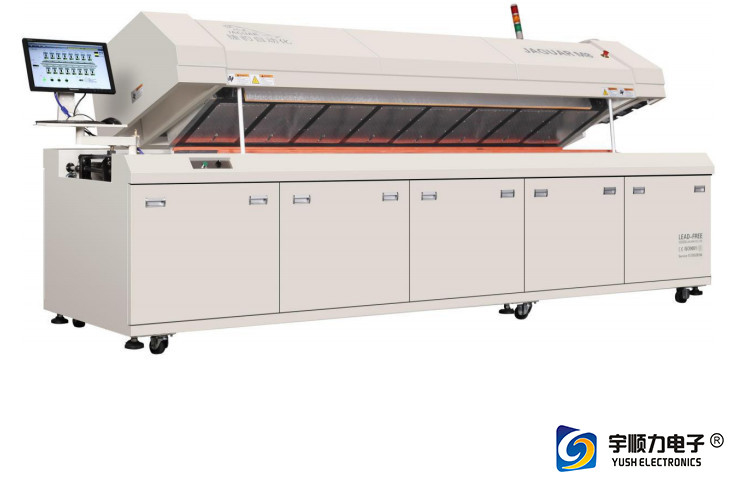

6 Zones 380V Hot Air Reflow Oven For PCB Soldering Machine

Product Details

Place of Origin: China Dongguan

Brand Name: YUSHUNLI

Certification: CE ISO

Model Number: YUSH M6

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD1000~10000

Packaging Details: plywooden case

Delivery Time: 5-7work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 200Sets/Month

Get Best Price
High Light:

380V Hot Air Reflow Oven

,

6 Zones Hot Air Reflow Oven

,

Hot Air Solder Reflow Oven

Usage::
PCB Soldering
Voltage::
380V
Dimensions::
3600×1100×1490mm
Rated Duty Cycle::
100%
Rated Capacity::
36KW
Current::
50/60Mhz
Weight (KG)::
900 KG
Heating Zones::
6 Zones
Application::
SMT Line
Function::
Reflow Oven
Range Of Rail Width::
50-400mm
Usage::
PCB Soldering
Voltage::
380V
Dimensions::
3600×1100×1490mm
Rated Duty Cycle::
100%
Rated Capacity::
36KW
Current::
50/60Mhz
Weight (KG)::
900 KG
Heating Zones::
6 Zones
Application::
SMT Line
Function::
Reflow Oven
Range Of Rail Width::
50-400mm
6 Zones 380V Hot Air Reflow Oven For PCB Soldering Machine
Hot Air Reflow Oven For PCB Soldering Machine SMT Welding Equipment

Introduction:
No.1 The unique advanced long life heating system



1. The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the
radiation power is 4UM with curved surface reflector to the rising temperature speed, improve the thermal efficiency. And the
special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect"
completely .
2. Using special high temperature resistant protection system in heating preservation system and special iron in furnace .
3. Using imported Taiwan SanYue long axis of high temperature fan motor and W shaped heat pipe, Model design, no noise,
shockless and easy for maintenance .
4. Whole oven are porous aluminum transfer the hot air to guarantee the hot air evenly to the PCB .the whole top oven fixtures
can open completely so that easy to clean the oven inside .

No.2 Smooth and reliable transmission system
1.The transmission system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can
running smooth ,speed range can be arrived at 0-1500mm/min.
2. Independent wheel structure support and match stainless belt to make the running smoothly and the speed precision is up
to ±20 mm/min .
3.Special stainless belt: durable and wear-resistant, not easy to deform and long life.

No.3 Stable and reliable electrical control system
1. It adopts imported thermostat control which owns fuzzy control and PID intelligent precision control system.It can fast
response the changes in external heat and ensure more temperature balanced by PID intelligent operation and automatic
control heating .
2. Using thermocouple imported from Taiwan by each temperature zone, it can fast and sensitive induct the changes in each
temperature zone, transfer and control timely, compensate the temperature balance in each zone.
3 .Special SSR solid state relay matched with dedicated radiator improve the heat efficiency greatly and prolong the lifetime
effectively. No contact output and fuzzy control function by thermostat, can monitoring the changes of outside temperature
and calorific value, controlling the heating device by minimum pulse, ensuring the high precision of the temperature control &
the uniform temperature in internal and the length ,direction, temperature distribution, all of these meet IPC standards .
4. Power is abundant, heat up fast, it’s only need 20 minutes from room temperature to constant temperature.
5 .Failure diagnosis and sound light alarm.
6. Delay shutdown production function, uniform cooling after the shutdown: prevent component deformation.

Specification:


Heating System

Number of heating zones

UP 6/BOTTOM6

Length of heating zones

2500MM

Heating mode

hot air

Cooling Mode

Force air

Cooling zones

Up 1 bottom 1











Conveyor System

Max. Width of PCB

350mm

Mesh belt width

400mm

Transmission Direction

L→R(or R→L)

Transmission Net Height

880±20mm

Transmission type

Mesh and chain

Range of rail width

0-300mm

Conveyor speed

0-1500mm/min

Auto/manual Lubrication

standard

Upper hood method

Manual(option:auto)

Fixed rail side

Front rail fixed(option: rear rail fixed)

Components high

Top 30mm and bottom 25mm

















Control system

Power supply

5line 3phase 380V 50/60Hz

Total power

24kw

Starting power

18kw

Normal power consumption

4KW

Warming time

About 20 mins

Temp. setting range

Room temperature-300℃

Temp. control method

PLC & PC

Temp. control precision

±1℃

Temp. deviation on PCB

±2℃

Data storage

Process Data and status storage(80GB)

Nozzle plate

Aluminum Alloy Plate

Abnormal Alarm

Abnormal temperature. (extra-high/extra-low temp.)

Board dropped alarm

Tower light: Yellow-warming, Green-normal, Red-abnormal



General

Dimension(L*W*H)

3600×1100×1490mm

Weight

900KG

Color

Computer gray



  Product detail

6 Zones 380V Hot Air Reflow Oven For PCB Soldering Machine 0

SMT nitrogent Reflow Oven Control System And Heating System:

1.Siemens PLC+industrial PC with precise controlling unit and stabilezed performance

2.The longer heating zones able to get high prodction offciency and throughput.


6 Zones 380V Hot Air Reflow Oven For PCB Soldering Machine 1


Reliable Conveyor System:

 1.The rail is dealt with hardened process to make it more stability.

 2.The conveyor chain adpoted with single Pin-plate design,Simple and practical.
