Product Details
Place of Origin: China Dongguan
Brand Name: YUSHUNLI
Certification: CE
Model Number: YSV-4A
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD1000~20000
Packaging Details: plywooden case
Delivery Time: 5-7work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200Sets/Month
Weight: |
230kg |
Blade Size: |
200*43.5*6mm (Straight Knife) |
Voltage: |
220V |
Working Pressure: |
0.5~0.8Mpa |
Cutting Width: |
Max 200mm |
V-cut Thickness: |
One Third Of The Plate Thickness |
Power: |
150W |
Blades Material: |
Imported High Quality High Speed Steel, Titanium Coated. |
Weight: |
230kg |
Blade Size: |
200*43.5*6mm (Straight Knife) |
Voltage: |
220V |
Working Pressure: |
0.5~0.8Mpa |
Cutting Width: |
Max 200mm |
V-cut Thickness: |
One Third Of The Plate Thickness |
Power: |
150W |
Blades Material: |
Imported High Quality High Speed Steel, Titanium Coated. |

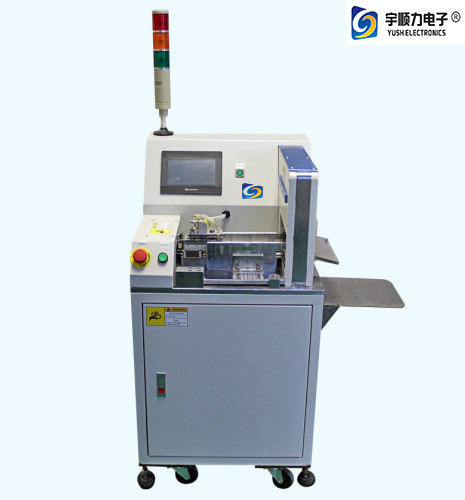

0.5~0.8Mpa YSV-4A COB Board PCB DEPANELING MACHINE/pcb depanelizer
Features:
For the automatic pcb cutting equipment developed for the COB light source board, the microcomputer is used to control the automatic feeding board. Suitable for PCB board, aluminum substrate, copper board slitting. Widely used in automotive, power, computers, home appliances, mobile phones, connectors, LED and other industries.
Equipment operation process:
COB board automatic board machine features:
1. For the pcb cutting equipment developed by COB light source board, the microcomputer is used to control the automatic feeding board.
2. Conveniently cut various COB substrates, bulb LED aluminum substrates, cob ceramic plates, etc.
3. The efficiency is 5~6 times faster than the traditional board machine.
4. When the cutting is performed, the micro stress of the components is about 200, to avoid tin cracking and prevent damage of precision parts.
5, gas hybrid design, double straight knife slitting, especially suitable for dividing precision PCB board .
6. When the cutting is performed, the micro stress of the components is about 200, to avoid tin cracking and prevent damage of precision parts.
7. Scythe work, suitable for various thickness MCPCB, the cutting stroke is below 2mm.
8, anti-dwelling structure design, there is no operational safety concerns.
Flow chart:
Specification Pratameter:
| Model | YSV-4A |
| Weight | 230kg |
| Blade size | 200*43.5*6mm (Straight knife) |
| Voltage | 220V |
| Working pressure | 0.5~0.8Mpa |
| Cutting width | Max 200mm |
| V-cut thickness | One third of the plate thickness |
| Blades material | Imported high quality high speed steel, titanium coated. |
| Power | 150W |
| Cutting boards | Fiberglass board, FR4 board, aluminum substrate, copper substrate, etc. |
| Feeding structure. | Precision pneumatic module. |
| Positioning | According to the V cut line positioning, the screen displays the feed data. |
