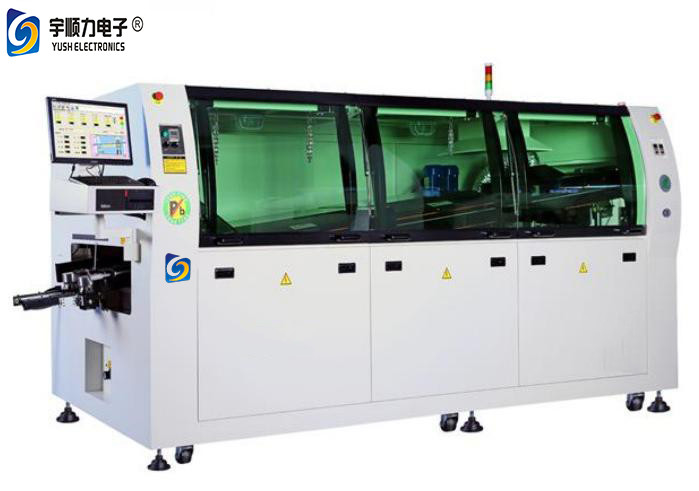

Name: PID SSR Control 0.5MPa Wave Soldering Machine
Brand: YUSHUNLI
SKU: YS-N450
Price: 1000 USD
Availability: InStock
Rating: 5 (135 reviews)

Product Details

Place of Origin: China Dongguan

Brand Name: YUSHUNLI

Certification: CE

Model Number: YS-N450

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD1000~10000

Packaging Details: plywooden case

Delivery Time: 5-7work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 200Sets/Month

Get Best Price

Product Details

Product Description

High Light:
                                                                                                                                                                                                                                                                                                                0.5MPa Wave Soldering Machine, PID SSR Control Wave Soldering Machine, 350mm pcb wave solder machine


Model No.:	YUSH N450	Number Of Heatingzones:	4
Lengthof Heating Zones:	2000mm	Total/running Power:	30KW/8-11KW
Air Supply:	0.5MPa	Control Method:	PC+PLC
Solder Type:	Lead-free/Sn-Pb	PCB Width:	50-350mm

Model No.:	YUSH N450
Number Of Heatingzones:	4
Lengthof Heating Zones:	2000mm
Total/running Power:	30KW/8-11KW
Air Supply:	0.5MPa
Control Method:	PC+PLC
Solder Type:	Lead-free/Sn-Pb
PCB Width:	50-350mm

PID SSR Control 0.5MPa Wave Soldering Machine

PID+SSR Control 50-350mm 0.5MPa Wave Soldering Machine

INTRODUCTION:

1.Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple

2.Automatic power system, frequency converter control, automatic board input system.

3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC

control, accurate and reliable.

4.Preheating system uses three independent temperature control so that ensure the excellent heat preservation,

temperature uniformity, temperature difference no more than±2ºC.

6.Tin stove adopts imported high frequency conversion motor independent control, stable performance.

7.Lead-free solder furnace with independent design, environmental protection and safety,e asy to clean.

8.Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating (IR

2.heating) control.

9.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.

10.With black box memory function, the machine can always store the production management records,

improve work efficiency.

11.Automatic claw cleaning function ensure the cleanliness of claws.

12.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators’

safety.

13.Nitrogen Structure(optional): High accuracy Oxygen analyzer, Nitrogen consumption of 16m3/hr based on

300-500ppm.

Specification:
