10W 15W 17W 355nm UV Laser PCB Cutting Machine

Name: 10W 15W 17W 355nm UV Laser PCB Cutting Machine
Brand: YUSHUNLI
SKU: YSATM-4C
Price: 1000 USD
Availability: InStock
Rating: 4.7 (113 reviews)

Product Details

Place of Origin: China

Brand Name: YUSHUNLI

Certification: CE

Model Number: YSATM-4C

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD1000~80000

Packaging Details: plywooden case

Delivery Time: 5-7work days

Payment Terms: L/C, D/A, D/P, Western Union, T/T, MoneyGram

Supply Ability: 200Sets/Month

Get Best Price

Product Details

Product Description

High Light:
                                                                                                                                                                                                                                                                                                                355nm UV Laser PCB Cutting Machine, 17W PCB Cutting Machine, 15W pcb depaneling machine


Laser Head:	SP (USA)	Laser Type:	UV
Laser Wavelength:	355nm Light Wave UV Laser	Max Power:	10W /15w/17W
Repetition Frequency:	1-250kHz	Table Reachition Range:	500mm*500mm
Max Working Range:	460mm460mm (Larger Area 620620mm Can Be Customized)	Dimension(LWH):	1300mmX1150mmX1455mm

Laser Head:	SP (USA)
Laser Type:	UV
Laser Wavelength:	355nm Light Wave UV Laser
Max Power:	10W /15w/17W
Repetition Frequency:	1-250kHz
Table Reachition Range:	500mm*500mm
Max Working Range:	460mm460mm (Larger Area 620620mm Can Be Customized)
Dimension(LWH):	1300mmX1150mmX1455mm

10W 15W 17W 355nm UV Laser PCB Cutting Machine

10W /15w/17W 355nm Light Wave UV Laser Pcb Cutting Machine/pcb depaneling machine

With Perfect CAM interface, it supports the mainstream of the drilling and milling file format;

man-machine interface is friendly; optical path is sealed, and it also has stable and reliable

integration of compact structure; with modular electronic control system, it’s easy for

maintenance.

Used in the procession of the soft and hard combination board (R-F PCBA), including the FPC

soft board, soft and hard combination board, which greatly improve the equipment

adaptability and lower the price.

Can be integrated with the production line: gantry structure and flight optical design, easy acc

ess to the production line, according to production requirements equipped with dedicated loa

ding and unloading and INLINE system to achieve full automation of production, a substantial i

ncrease in production efficiency, is designed for FPC and PCB processing Tailored equipment.

PCB UV laser cutting machine application

• Used in cutting a variety of flexible circuit board materials and cover film,

clean and free carbonization;cutting rigid material With high quality, high

speed, the thickness of up to 1mm (0.04 ").

• Because the UV light is through decomposition and vaporization rather

than melting , almost no burrs left after processing.

• Thermal effect is small, no stratification but after cutting, the cutting

edge is precise and smooth, and the sidewall is steep. Can cut a variety

of substrate materials, such as silicon, ceramics, glass, etc ;

• Various functional film of precision etching forming.

• Efficient, fast FPC / PCB cutting, drilling and covering the window,

fingerprint identification chip cutting, TF memory card sub-board, mobile

phone camera module cutting applications.

Machine Feature:

Efficient, fast FPC / PCB cutting, drilling and covering the window, fingerprint identification chip cutting, TF memory card sub-board, mobile phone

camera module cutting applications.

Block, delimit, specify block or select area cut and form directly, cut edge neat rounded, smooth without burr, no overflow glue. Products can be

arranged in a matrix for multiple automatic positioning cutting, especially for fine, difficult, complex patterns such as the appearance of cutting

High-precision CCD automatic positioning, focusing, so that positioning fast and accurate, time-saving, high efficiency, fast delivery.

High-performance laser: the use of international brands of solid-state UV lasers, with a good beam quality, focusing spot is small, uniform power

distribution, thermal effect is small, slit width is small, high cutting quality is the perfect cutting quality assurance.

Fast and high precision: High precision, low drift galvanometer with fast coreless linear motor system platform combination, fast cutting while

maintaining the high accuracy of the order of microns.

Fully automatic positioning: the use of high-precision CCD automatic positioning, high precision, without human intervention, simple operation, to

achieve the same type of one-click mode, greatly improving production efficiency.

Exhaust gas treatment system: suction system can cut all the exhaust gas to eliminate, to avoid the harm to the operator and the pollution of the

environment.

High degree of automation: galvanometer automatic correction, automatic focus, full automation, the use of laser displacement sensor automatically adjust the focus to the height of the table to achieve fast alignment, time-saving peace of mind.

Easy to learn software: independent research and development based on the Windows system control software, easy to operate the Chinese interface,friendly and beautiful, powerful and diverse, easy to operate.

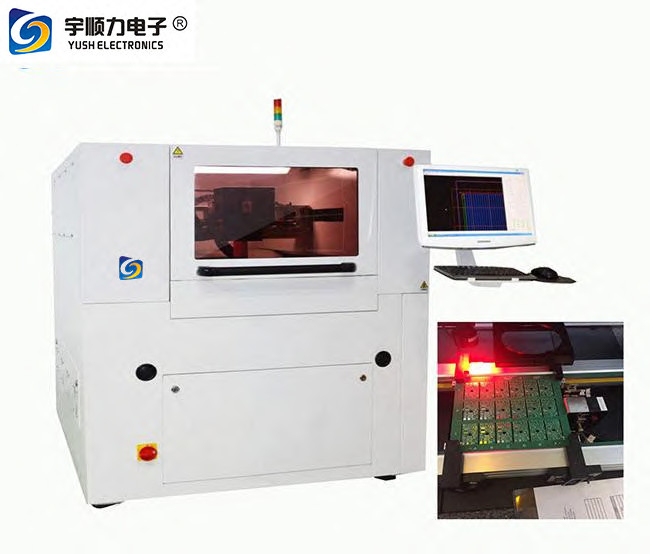

10W 15W 17W 355nm UV Laser PCB Cutting Machine 1
