4 Axes 300*300*60mm SMT Liquid Dispensing Machine

Product Details

Place of Origin: JiangSu

Brand Name: YUSH

Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Model Number: YSATM-3L

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD1100

Packaging Details: Plywooden case

Delivery Time: 5-7 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 200 sets/ month

Get Best Price
High Light:

SMT glue dispenser

,

SMT desktop liquid dispensing robot

Working Area:
300*300*60 Mm
Working Relative Humidity:
20~90% No Condensation
Robot Weight:
34kg
Dimensions(W*D*Hmm)::
485*505*610(mm)
Voltage::
250W
Glue Pump Suitable For::
Almost All Viscosity
Dispensing Head:
One Or More On Request
Working Area:
300*300*60 Mm
Working Relative Humidity:
20~90% No Condensation
Robot Weight:
34kg
Dimensions(W*D*Hmm)::
485*505*610(mm)
Voltage::
250W
Glue Pump Suitable For::
Almost All Viscosity
Dispensing Head:
One Or More On Request
4 Axes 300*300*60mm SMT Liquid Dispensing Machine

                           High quality double-liquid desktop silicone dispenser robot



300*300*60 mm 34kg smt liquid dispensing machine/glue dispenser

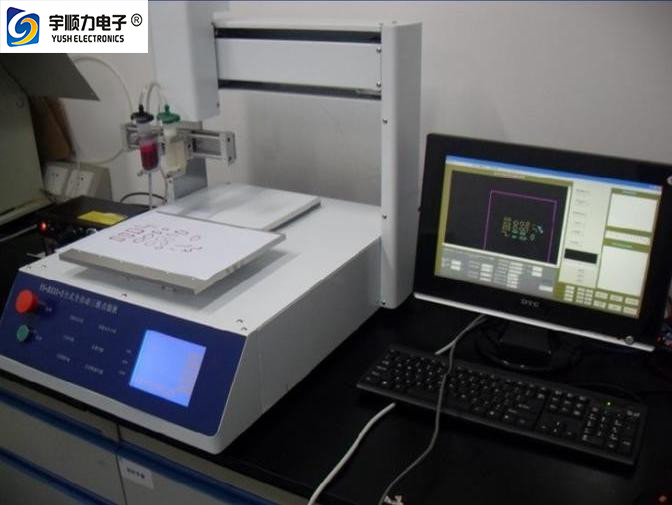

4 Axes 300*300*60mm SMT Liquid Dispensing Machine 0


Specifications :

Model :YSATM-3L

1. For Silicone glue, UV glue, AB glue, etc
2.Holder and programs easy to amend
3.high quality, CE conformed

Suitable for:
Silicone glue, UV glue, AB glue, EPOXY(black glue), COB black glue, white glue, EMI conductive glue, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, etc.

Usage:
Can dot, draw lines, squares, circles and all kinds of irregular graphics on the surface, on the outside wall, in the vertical plane and the gap of the products.


4 Axes 300*300*60mm SMT Liquid Dispensing Machine 1



desktop liquid dispensing robot Specification:

Model YSATM-3L
Power 220/110 V
Voltage 250W
Working area(X*Y*Z)

300*300*60 mm
Can be customized

Speed Max. 500mm/sec
Dispensing quantity Min. 0.001ml
resolution 0.01mm
Repeatability +/-0.01mm
Size(L*W*H) 460*450*480 mm
Weight 70KG



HTB1OY_OGVXXXXb7XFXXq6xXFXXXH


Features


1. Full automatic robot with 3 or 4 axes.
2. Dispensing path can be set in the robot or imported from out computer.
3. Easy operation, the holder and program easy to amend.
4. Can store multiple independent running program.
5. High precision, the glue is well controlled.
6. Can configure multiple dispensing head.
7. Wide dispensing area which can set several products.
8. The working table can be customized on request.






Application


1 Electro-acoustic industry: speakers, buzzers, audio, headphones
2 Inductance industries: small transformers, SMD transformers, relays, small coil motors
3 Communications industry: cell phone keyboard, mobile phone shells, radio, telephone, fax
4 Computers, digital products, digital elephant machine, MP3, MP4, electronic toys
5 Switches, connectors, wire, plug cable
6 Electronics: electronic components, integrated circuits, circuit board solder paste, electronic parts, LCD liquid crystal screen, etc.
7 Optics: optical lenses, optical head
8 Mechanical hardware, battery box, trademark, steam machinery spare parts
9 LED industries
