Product Details
Place of Origin: China
Certification: CE
Model Number: YS-40R
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Business negotiation
Packaging Details: Plywood package
Delivery Time: 15 days to 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets per year
Brand Name: |
YS-40R |
Applicable Head: |
3 Multiple Heads |
Application Range: |
SMD,Chips,etc. |
Capability: |
200,000CPH |
Brand Name: |
YS-40R |
Applicable Head: |
3 Multiple Heads |
Application Range: |
SMD,Chips,etc. |
Capability: |
200,000CPH |

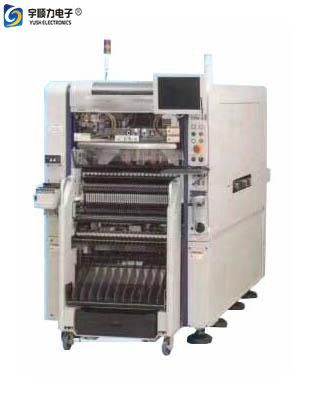

2nd - Hand YS-40R Mounted Machine 200000 CPH 3 Heads multiple Nozzles
Below is the operation video of Pick and Place Machine on YuTube
Machine features:
Brand Name:YUSH
Model Number:YS-40R
Name:YS Chip Mounter YS-40R
Part No.:YS-40R
Lead time:15 days After Payment
Condition:Original Used
Type:SMT pick and place machine
Usage:SMT Machine
Quality:100% Tested
Shipping ways:DHL,FedEx,TNT,UPS,EMS,by SEA,by Air
Product parameter:
| Model | |
| Board size | L460*W335(MAX)-L50*W50(MIN) |
| Mounting Accuracy Absolute Accuracy (μ+3σ | ±0.05mm/chip, ±0.05mm/QFP |
| Mounting speed | 200000CPH |
| Mountable Components | chips |
| Air | 5 Kgf,350N/mim |
| Power supply | AC200~416V±10% 3PH,50/60Hz,4kVA |
| Head | support 3 multiple head nozzles |
| Dimensions | 1650*1000*1900 mm |
| Total weight | 1600KG |
Demo for sale machine:
Packing method:
1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;
Shipping way:
1)By air ,for sample and small package ,wordwide express like DHL,UPS,FedFX,EMS....
2)By sea, for large package and quantity;
3)By car or other ways as customer requested;
