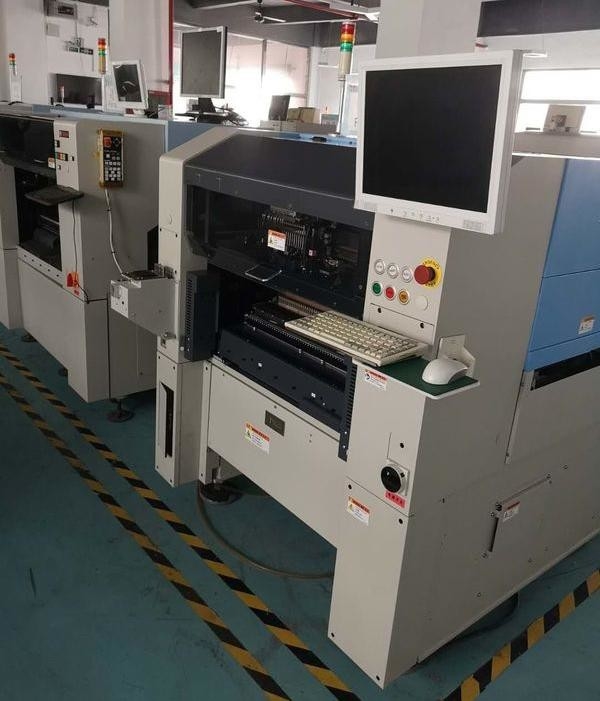

Yamaha YS12 Pick And Place Machine Loading Speed 36000CPH High Accuracy

China Yamaha YS12 Pick And Place Machine Loading Speed 36000CPH High Accuracy supplier

Large Image :  Yamaha YS12 Pick And Place Machine Loading Speed 36000CPH High Accuracy

Product Details:

Place of Origin: Japan
Brand Name: Yamaha
Certification: CE
Model Number: YS12

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD 45500-65500 piece
Packaging Details: plywood case
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 20 piece per day
Contact Now
Detailed Product Description
PCB Size: 510x460

Yamaha YS12 pick and place machine



PCB size: L510X460(Max)/L50xW50mm(Min)

PCB thickness: substrate height: 0.4 ~ 0.3

SMT precision: accuracy: (U ﹢ 3 sigma) + / - 0.05 mm/CHIP

Repetition accuracy :(3 sigma) ±0.03mm/CHIP

Loading speed: 36000CPH(0.1 second /CHIP conversion) 10 multifunctional stickers

Placement components: 0402 (mm unit conversion) ~ □20MM components

Possible mounting elements: 120 types (converted to 8MM material plate)

Power specifications: three-phase AC200/208/230/240/380/400/416 v + 10 ﹪. 50/60 hz

Power: KVA

Specification of air source: over 0.55mpa.305 union min(ANR)(Max). Clean and dry condition

Overall dimension/weight of main engine: L1254xW1400xH1450mm (surface above the cover)

L1464(extended transmission device) x W1542(guide rail side of disposable refueling car) x H1450MM(surface above the cover)

1340 kg



Yamaha YS12 Pick And Place Machine Loading Speed 36000CPH High Accuracy

Yamaha YS12 Pick And Place Machine Loading Speed 36000CPH High Accuracy
