3 Phase SMT Pick And Place Machine 10 Multi - Heads 36000 CPH Capability

Product Details

Place of Origin: China

Brand Name: YUSH

Certification: CE

Model Number: YS-12

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Business negotiation

Packaging Details: Plywood package

Delivery Time: 15 days to 20 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50 sets per year

Get Best Price
High Light:

pick and place soldering machine

,

smt pick and place equipment

Brand Name:
YAMAHA
Applicable Components:
0402(Metric Base) To 32*mm Components
Application Range:
SMD,Chips,etc.
Capability:
36,000CPH
Brand Name:
YAMAHA
Applicable Components:
0402(Metric Base) To 32*mm Components
Application Range:
SMD,Chips,etc.
Capability:
36,000CPH
3 Phase SMT Pick And Place Machine 10 Multi - Heads 36000 CPH Capability

72,000CPH Capability Smart Placement Second- hand Yamaha YS24 Pick and Place Machine



Below is the operation video of Pick and Place Machine on YuTube



https://youtu.be/IZX3HnE9fUg



Machine features:



Place of Origin:Japan

Brand Name:YUSH

Model SN: YS12

Through-put (Optimum):36,000CPH(0.1sec/CHIP Equivalent)

Applicable components:0402

Number of component types:120 types

Air supply source:0.45MPa or more, in clean, dry states

Weight:Approx. 1,340kg



Product parameter:



Model YS12
Applicable PCB L510*W460mm to L50x*W50mm
Through-put (Optimum) 36,000CPH(0.1sec/CHIP Equivalent)
Mounting accuracy (Yamaha's standard components) Absolute accuracy (μ+3σ) : +/-0.05mm/CHIP Repeatability(3σ) : +/-0.03mm/CHIP
Applicable components 0402(Metric base) to 32*mm components (Note 1)*Correspondence since Jan., 2010
Number of component types 120 types(Max, 8mm tape reel conversion)
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry states
External dimension(Note 2) L1,254~W1,440~H1,450mm(cover top)
L1,464(End of extension conveyor)xW1,542(End of guide for feeder carriage)xH1,450mm(cover top)
Weight Approx. 1,340kg


Demo for sale machine:

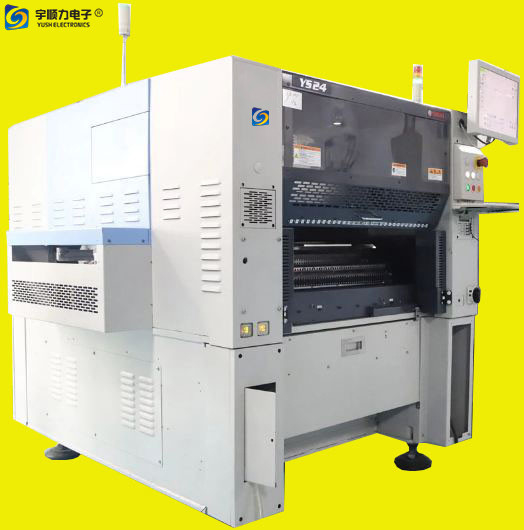

3 Phase SMT Pick And Place Machine 10 Multi - Heads 36000 CPH Capability 0



Packing method:
1) Standard box package for light and small item;
2) Strong wood package for heavy and large equipment;

Shipping way:
1) By air, for sample and small package, wordwide express like DHL, UPS, FedFX, EMS...
2) By sea, for large package and quantity;
3) By car or other ways as customer requested;



3 Phase SMT Pick And Place Machine 10 Multi - Heads 36000 CPH Capability 1
