Home > products > Glue Dispensing Machine > 2 Table / Vision Glue Dispensing Robot Machine Energy Efficiency

2 Table / Vision Glue Dispensing Robot Machine Energy Efficiency

Product Details

Place of Origin: China

Brand Name: YUSH

Certification: CE

Model Number: YS-D400

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Business negotiation

Packaging Details: Plywood case

Delivery Time: 3 days to 7 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 100 sets per month

Get Best Price
High Light:

glue dispensing system

,

automatic glue dispensing machine

Glue Dispenser Area:
300*300*80mm
Max. Speed:
1000mm/s (XY)
Machine Size:
780*870*1650(L*W*H)
Max. Acceleration:
1g (XY)
Positioning Accuracy:
±25μm(XYZ)
Repeatability:
±12.5μm(XYZ)
Glue Dispenser Area:
300*300*80mm
Max. Speed:
1000mm/s (XY)
Machine Size:
780*870*1650(L*W*H)
Max. Acceleration:
1g (XY)
Positioning Accuracy:
±25μm(XYZ)
Repeatability:
±12.5μm(XYZ)

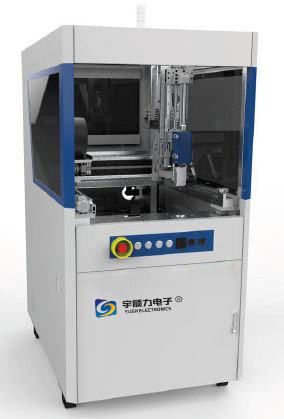

2 Table / Vision Glue Dispensing Robot Machine Energy Efficiency

Intelligent Operation High Efficiency Machine Dual Table & Vision Glue dispenser Model YS-D400



Below is the link video of Glue dispenser Machine on YuTube



https://youtu.be/3Vksj3SDjaM



Glue dispenser mchine features



1.The whole-area visual positioning system and high-precision visual positioning system, 360-degree intelligent positioning and identification, can be placed freely without the fixture product, and automatically follow the dispensing.

2.Automatic identification of defective products, automatic screening of products.

3.Customize the running track or point-to-point position, arbitrarily program the length, position, speed, height and working state of each XYZ motion track.

4.In the same dispensing process, more than 100 different products and dispensing distinctions can be identified.

5.Simple operating system, maximum limit reduces reliance on people.

6.Programming time is 30%-50% faster than operating systems in the same industry.



Glue dispenser mchine parameters


Machine size:770*1200*1640(L*W*H)
Glue dispenser area:350*475mm
Max. speed:1000mm/s (XY)
Max. acceleration:1g (XY)
Positioning accuracy:±25μm(XYZ)
Repeatability :±12.5μm(XYZ)

Special features

1.Double-station cycle work saves standby time and increases productivity.
2.Dual vision intelligent dispensing system.
3.400*500mm large dispensing range.

Optional configuration

Laser altimetry system.
Bottom heater system.
Dual table.
Low level detection and alarm.
AOI detection module.
Dual jet valve.
Rotating tilt.
Barcode recognition system.

Demo glue dispenser mchine exhibitions

2 Table / Vision Glue Dispensing Robot Machine Energy Efficiency 0

Core spare parts of glue dispenser mchine

2 Table / Vision Glue Dispensing Robot Machine Energy Efficiency 1
