Product Details
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: YS-V350
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Business negotiation
Packaging Details: Plywood case
Delivery Time: 3 days to 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Glue Dispenser Area: |
350*475mm |
Max. Speed: |
1000mm/s (XY) |
Machine Size: |
770*1200*1640(L*W*H) |
Max. Acceleration: |
1g (XY) |
Positioning Accuracy: |
±25μm(XYZ) |
Repeatability: |
±12.5μm(XYZ) |
Glue Dispenser Area: |
350*475mm |
Max. Speed: |
1000mm/s (XY) |
Machine Size: |
770*1200*1640(L*W*H) |
Max. Acceleration: |
1g (XY) |
Positioning Accuracy: |
±25μm(XYZ) |
Repeatability: |
±12.5μm(XYZ) |

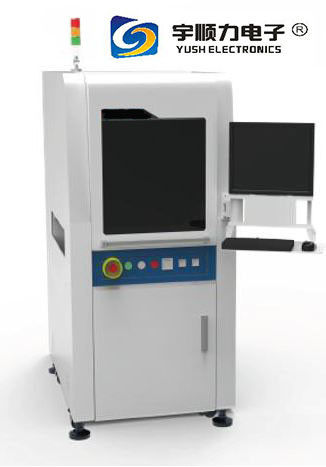

Intelligent Operation Online Machine Dual Vision Glue dispenser Model YS-V350
Below is the link video of Glue dispenser Machine on YuTube
Glue dispenser mchine features
1.High-precision dispensing with CCD full-area vision system & CCD for high-precision visual positioning without the need for precision fixtures.
2.In the same dispensing process, you can identify more than 100 different products at the same time and then dispense separately.
3.Non-contact injection valves or piezo valves for smaller dispensing diameters, improved dispensing consistency, and increased productivity and product quality.
4.The automatic voltage stabilization system ensures stable gas pressure and consistent dispensing.
5.The valve body automatic constant temperature system ensures the fluidity of the fluid is consistent.
6.Simple operating system, the maximum limit is dependent on the operator.
Glue dispenser mchine parameters
