Product Details
Place of Origin: JiangSu
Brand Name: YUSH
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: YSV-2A
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 1000
Packaging Details: Plywooden case
Delivery Time: 3 days
Payment Terms: T/T ,Paypal ,West Union ,L/C ,D/P .
Supply Ability: 300 sets/ month

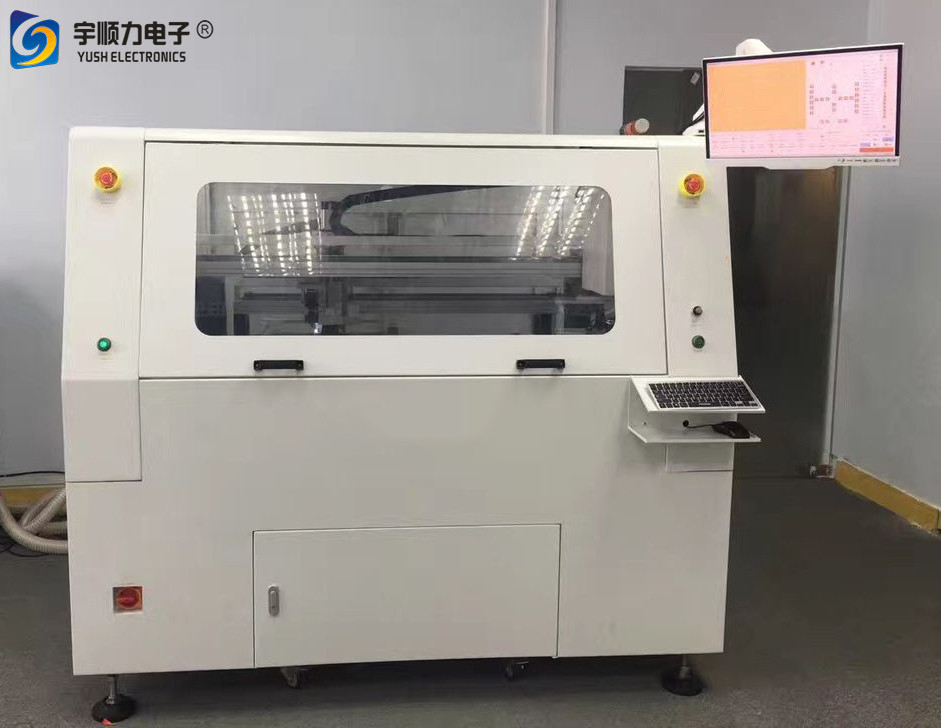

PCB Depaneling Router Machine PCB Separation for FR4 , Glass Fiber Board
Specification:
Model No.: YSV-2A
Machine Dimension: 521 x 1200 x 410 mm
Size of Transfer Belt: 1200 x 180 x 127 mm
Material of Blade: SHK-9 high speed steel
Cutting Speed: 0-1000 mm / s
Cutting Thickness: 0.8-3.5 mm
Voltage: 220VAC / 110VAC
Weight: 80kg
Feature:
one cutting span is 0-460mm/pcb
cutting blade speed are 2 type: 500mm/s & 300mm/s
operate platform adjusting range from 0 to 50mm
flexible setting design. i.e. micro adjust the upper and lower blade to fit some kinds of thickness of PCB
as per the length of PCB, free setting stop point
Application:
aluminum base board
copper substrate
FR4
glass fiber board
LED light bar panel
Maintenance:
take off the power botton and clean the machine after finish working
be careful to protect the upper and lower blade
move the blades and protect them with machine oil
check the screw fastening time to time
Delivery:
by air / sea / Fedex / DHL / UPS
our forwarder partner or yours
packing with plywooden case
packing fee: USD50 / pcb
