3 Phase Solder Reflow Oven / Lead Free Hot Air PCB Reflow Oven

China 3 Phase Solder Reflow Oven / Lead Free Hot Air PCB Reflow Oven supplier
3 Phase Solder Reflow Oven / Lead Free Hot Air PCB Reflow Oven supplier 3 Phase Solder Reflow Oven / Lead Free Hot Air PCB Reflow Oven supplier 3 Phase Solder Reflow Oven / Lead Free Hot Air PCB Reflow Oven supplier 3 Phase Solder Reflow Oven / Lead Free Hot Air PCB Reflow Oven supplier 3 Phase Solder Reflow Oven / Lead Free Hot Air PCB Reflow Oven supplier 3 Phase Solder Reflow Oven / Lead Free Hot Air PCB Reflow Oven supplier

Large Image :  3 Phase Solder Reflow Oven / Lead Free Hot Air PCB Reflow Oven

Product Details:

Place of Origin: China
Brand Name: Yush
Certification: CE/ISO
Model Number: RY10-D

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD 26999-40000 /peice
Packaging Details: wooden case and vacuum packaging
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 100 piece per month
Contact Now
Detailed Product Description
Number Of Heating Zones: Up 10/Bottom 10 Number Of Cooling Zones: Up 3/ Bottom 3
Length Of Heating Zones: 4600mm Transmission Type: Mesh+chain
Mesh Belt Width: 500mm Range Of Rail Width: 50-450mm
Conveyor Speed: 0-2000 Mm /min Power Supply: 380V 50/60 HZ 3 Phase
Dimension: 6120*1350*1490mm Warm Time: 20 Mins
Weight: 2450Kg Heating Mode: Hot Air

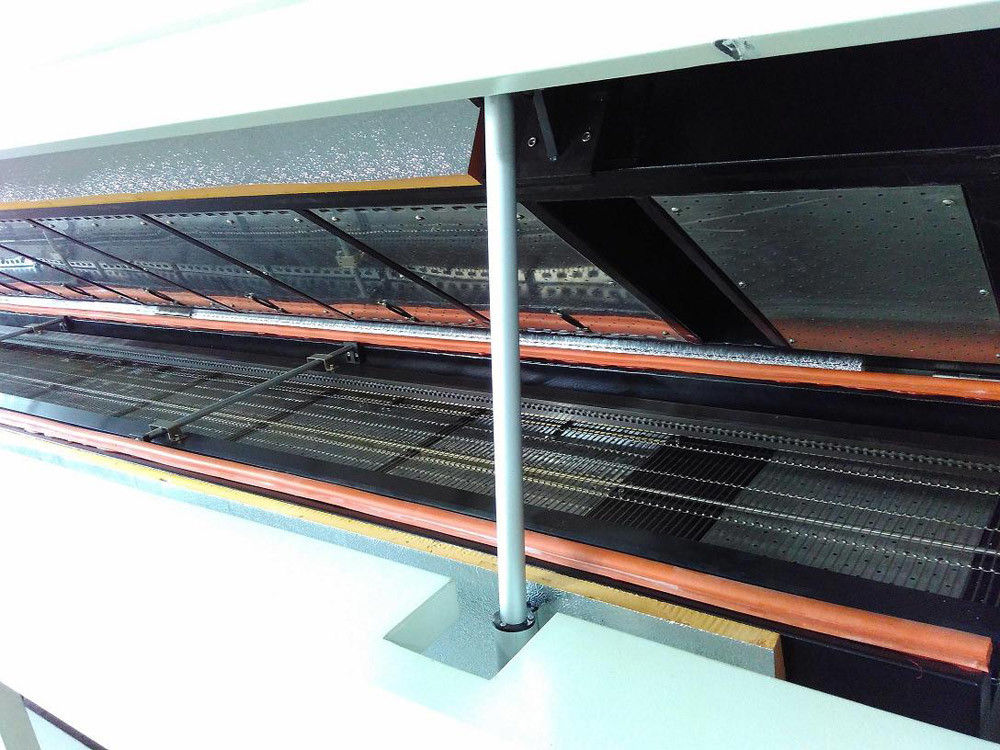

Top lead free reflow oven with ten heating zone





Introduction:

1. The brand computer and Siemens PLC intelligent control system, high precision temperature control is ± 1-2 ℃ (if the computer crash accident, it can realize off-line work, do not affect production) and to ensure that the control system is stable and reliable;

2. Windows XP operating interface with powerful and simple operation.

3.In order to ensure safety and reliability, the cylinder body can be lift up automatically.

4. Device is equipped with mesh belt, transport smoothly, no shaking and no deformation, which ensure smooth PCB transport. Synchronous guide transmission mechanism and automatic SMT machine online connection ensure that guide adjustable wide precision and high service life.

5. Automatic control lubrication system and automatic lubrication transmission chain.

6.All heating zone control by computer PID(upper temperature zone and lower temperature zone implementation independent temperature control, that means it can divide temperature area heat, in order to reduce starting power)

7. Net/chain transmission by computer to carry out the whole closed loop control, which can meet different kinds of PCB production at the same time.

8. With fault sound and light alarm function.

9. With leakage protector, ensure that the operating personnel and control system security.

10.The built-in UPS and automatic delay shutdown system guarantee return welder in power or overheat do not damaged PCB and the machine.

11. The German ERSA world leading microcirculation heating mode, and the upper and lower independent air microcirculation system, temperature uniformity and thermal compensation high efficiency, high efficient supercharged accelerated air duct, greatly improve the circulating hot air flow, heat up temperature quickly (about twenty minutes), thermal compensation for high efficiency, high temperature welding and curing;

12. The upper and lower every temperature zone with independent temperature inductive sensor, real-time monitoring and compensation every temperature zone balance;

13. Have password administration of the operating system, to prevent the irrelevant personnel changes to the process parameters, operation records management traceability process parameters change process, improve the management convenient. For storing user existing temperature speed setting and Settings of the temperature curve, and can be used for all data and curve printing;

14. Integrated control window, the computer switch, test curve, print curve and data transmission are easily operation, humanized design. Equipped with three-channel temperature curve online testing system, may at any time to check welding objects by the actual temperature curve (without the other match temperature curve tester);

15. From international technology quick cooling system, use a magnifying glass type efficient rapid cooling, cooling speed can reach 3.5 ~ 6 ℃/ SEC, management is very convenient; The outer forced cooling device, ensure that spot crystal effect (Option selected items, the standard configuration for forced natural air cooling).





3 Phase Solder Reflow Oven / Lead Free Hot Air PCB Reflow Oven

Specification:

Specification:

Model Yush R10-D









Heating System

Number of heating zones UP 10/BOTTOM 10
Number of cooling zones Top:3, bottom:3
Length of heating zones 3900mm
Heating mode hot air
Cooling Mode Air Oven:Forced air; Nitrogen Oven: Water Chiller
Exhaust Volume 10m³/min * 2 exhausts











Conveyor System

Max. Width of PCB 300mm* 2 single lane 50-500mm
Mesh belt width 600mm
Transmission Direction L→R(or R→L)
Transmission Net Height 900±20mm
Transmission type Mesh and Dual rail chain
Range of rail width 0-300mm* 2 single lane 50-500mm
Conveyor speed 0-2000mm/min
Auto/manual Lubrication standard
Fixed rail side 1,4 rail fixed,2,3 rail moving
Components high Top and bottom 25mm

















Control system

Power supply 5 line 3 phase 380V 50/60Hz
Total power 50kw
Starting power 42kw
Normal power consumption 10-14KW
Warming time About 35 mins
Temp. setting range Room temperature-300
Temp. control method PID close loop control & SSR driving
Temp. control precision ±1
Temp. deviation on PCB ±2
Data storage Process Data and status storage(80GB)
Nozzle plate Aluminum Alloy Plate
Abnormal Alarm Abnormal temp. (extra-high/extra-low temp.)
Board dropped alarm Tower light:Yellow-warming, Green-normal, Red-abnormal



General

Dimension(L*W*H) 5711650×1550mm
Weight 2800KG
Color White





Product detail



SMT nitrogent Reflow Oven Control System And Heating System:

1.Siemens PLC+industrial PC with precise controlling unit and stabilezed performance

2.The longer heating zones able to get high prodction offciency and throughput.

Reliable Conveyor System:

1.The rail is dealt with hardened process to make it more stability.

2.The conveyor chain adpoted with single Pin-plate design,Simple and practical.
