50HZ FPC Pulse Soldering Machine Dual - Head Precision SMC Cylinder With Guide Rail

FPC pulse soldering machine of Dual-head(Model:YSPP-1A)

Features:

1.Taking German technology, the original manufacturer.

2.FPC, FFC cable welding experts, to provide PCB / FPC welding solutions for enterprises; and can weld products with a solder joint spacing of 0.2mm.

3. 7 * 24 hours to provide technical services.

4. Handling complaints within a limited time and responding to customers within half an hour.

5.One year free warranty service.

Advantages:

1, Depend on different products, heating rate can be adjusted, automatic setting. Chinese screen and PLC control. Temperature accuracy.
2, Special material welding head, to ensure that the product is under pressure, using precision guide cylinder to control the pressure of the indenter. Accuracy is more accurate. Weld spacing 0.02mm pad.
3, with a vacuum function, it is easier to adjust the alignment
4. The temperature is numerically controlled, clear and precise, and the cylinder press stroke is adjustable.
5, equipped with a digital pressure gauge, preset pressure range
6, microcomputer control, accurate and stable, clear and have a temperature curve.
7, programmable curve including preheating and reflow temperature
8, suitable for a variety of high-density TAB, TCP crimp and FPC, FFC and PCB solder crimp
9. Working with double-headed double-station work, can be done by one person. When welding on the left side, the fixture on the right rail is welded, and the left and right fixtures can be welded at the same time, and the cycle is done, so that as long as the staff can put it on, Do not waste welding waiting time, work efficiency is extremely high.

10, FPC and PCB, such as mobile phone screen, bank U shield, printer, electronic watch, battery protection board, solder connection between connectors
11, the connection between ACF and PCB, connector
12, TAB and PCB, connector connection
13, the connection between TFT and PCB, connector
14. Fuse connection between FFC (flexible flat cable) and PCB and connector
15. Solder connection between zebra paper and PCB and connector
16. Solder connection between very thin coaxial wire and PCB and connector
17, solder connection of hard disk, resistor, capacitor, coil, transformer, IC card, etc.
18, the solder connection between the battery pole piece and the PCB, the connector
19. Solder connection of the winding terminal of a small motor
20, resin, thermocompression bonding of relays, printers, glasses, etc.

Specification and parameters:

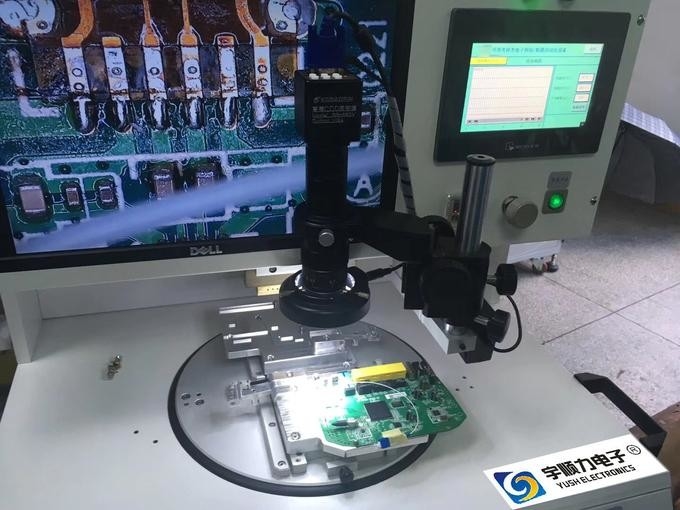

DEMO Exhibitions:
