Product Details
Place of Origin: SuZhou
Brand Name: YUSHLI
Certification: CE
Model Number: YS-3525-X
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: plywood case
Payment Terms: T/T L/C paypal west union credit card
Supply Ability: 2000sets/ month
Step Pitch Select: |
1-4(10mm Step Pitches) |
Description: |

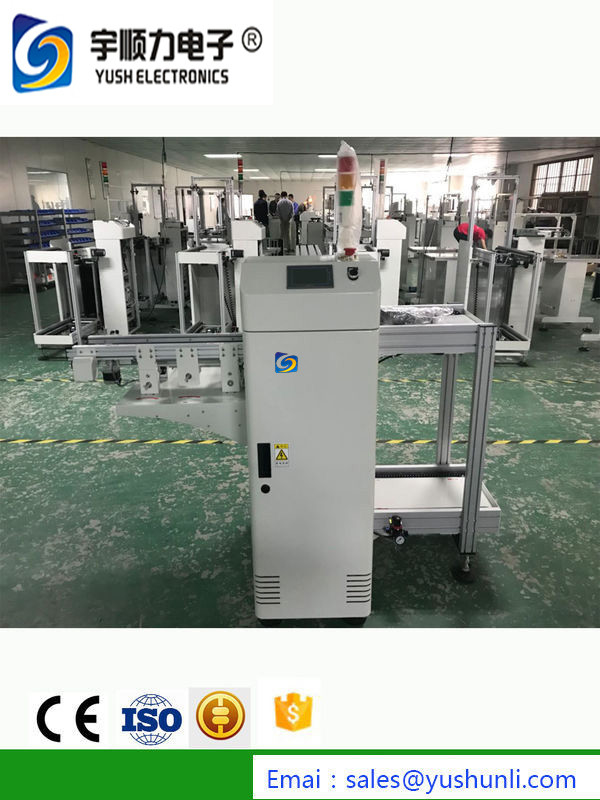

This Equipment Is Used To Collect PCBs Into Magazine At The End Of SMT Production Line. |
PCB Loading Time: |
Approx.5 Seconds |
Magazine Change Over Time: |
Approx.25 Seconds |
Power Source & Consumption: |
100-230VAC(customized),1ph,max 300VA |
Magazine Number: |
Transport Up:1pcs,Transport Down:1pcs(or Customized) |
Step Pitch Select: |
1-4(10mm Step Pitches) |
Description: |
This Equipment Is Used To Collect PCBs Into Magazine At The End Of SMT Production Line. |
PCB Loading Time: |
Approx.5 Seconds |
Magazine Change Over Time: |
Approx.25 Seconds |
Power Source & Consumption: |
100-230VAC(customized),1ph,max 300VA |
Magazine Number: |
Transport Up:1pcs,Transport Down:1pcs(or Customized) |
1.Solid and stable design.
2. PLC control system.
3. Light touch LED membrane switch or touch screen control panel options available.
4. Top and bottom pneumatic clamps to secure magazine rack.
5.Pressure regulated on pusher’s to prevent board damage.
6. Self diagnostic error code display.
7. SMEMA compatible.
Specification parameter:
| Model | YS-3525-X | YS-4533-X | YS-539-X | YS-3546-X |
| PCB size(L*W) | 50*50-350*250 | 50*50-460*330 | 50*50-530*390 | 50*50-530*460 |
| Dimension(L*W*H) | 1730*770*1250 | 1900*850*1250 | 2330*910*1250 | 2330*980*1250 |
| Magazine size(L*W*H) | 355*320*563 | 460*400*563 | 535*460*570 | 535*530*570 |
| Weight (kg) | 165kg | 205kg | 225kg | 245kg |
| Step pitch select | 1-4(10mm step pitches) |
| Description | This equipment is used to collect PCBs into magazine at the end of SMT production line. |
| PCB loading time | Approx.5 seconds |
| Magazine change over time | Approx.25 seconds |
| Power source & consumption | 100-230VAC(customized),1ph,max 300VA |
| Magazine number | Transport up:1pcs,Transport down:1pcs(or customized) |
| PCB thickness(mm) | min 0.4mm |
| Transport direction | L→R or R→L |
| Transport height(mm) | 900±20(or customized) |
| Air pressure & consumption | 4-6bar,max 10L/min. |
