Product Details
Place of Origin: SuZhou
Brand Name: YUSH
Certification: CE
Model Number: YSPE
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: plywood case
Payment Terms: T/T L/C paypal west union credit card
Supply Ability: 20sets/ month
Flexible Board PCB Punching Machine Assembly Working Noise:: |
≤60dB |
Flexible Board PCB Punching Machine Assembly Work Schedule:: |
≥60mm |
Flexible Board PCB Punching Machine Assembly Stroke Speed:: |
8 ~ 15s Adjustable (without Plate Take Time) |
Flexible Board PCB Punching Machine Assembly The Use Of Voltage: |
220VAC |
Flexible Board PCB Punching Machine Assembly Plate Area: |
330×220mm |
Flexible Board PCB Punching Machine Assembly Working Pressure: |
0.50-0.70Mpa Dry Gas Source |
Flexible Board PCB Punching Machine Assembly Working Noise:: |
≤60dB |
Flexible Board PCB Punching Machine Assembly Work Schedule:: |
≥60mm |
Flexible Board PCB Punching Machine Assembly Stroke Speed:: |
8 ~ 15s Adjustable (without Plate Take Time) |
Flexible Board PCB Punching Machine Assembly The Use Of Voltage: |
220VAC |
Flexible Board PCB Punching Machine Assembly Plate Area: |
330×220mm |
Flexible Board PCB Punching Machine Assembly Working Pressure: |
0.50-0.70Mpa Dry Gas Source |
Features:

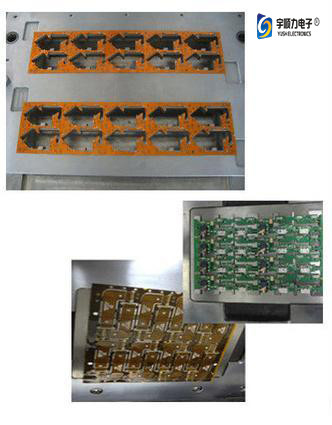

1. Flexible board PCB punching machine assembly,Flex PCB punching machine prototype by means of punching dies, to avoid micro-cracks caused by manual.
2. Die toolings is changeable
3. Easy set up of punching dies
4. Loading and unloading PCBs is convenient
5. Easy operation, has safe protection system
6. Air cylinder driven
Flexible board PCB punching machine assembly,Flex PCB punching machine prototype -YSPE10T Specifiction:
| Description | LED Alum PCB punching machine |
| Model | YSPE-10T |
| LED Alum PCB punching machine Working area | 330*220mm |
| Working pressure | 0.45-0.7Mpa |
| Machine dimension | 730*810*1760mm |
| Cutting precision | ±0.05mm |
| Cycle time | 7.5s/cycle |
| Weight | 650KG |
| Output | 8T |
| PCB/FPC thickness | 0.08-3.5MM |
| PCB/FPC material | FPC, FR1, FR4, CEM-1, CEM-3, MCPCB |
| Cutting mode | Punching |
| Punch fixture | Die tooling(mold) |
| Working Property | LCD display, Automatically records the number of processed products, automatic punching |
| Transmission port | International standard |
| Instruction system | International standard instruction system |
| Operation Language | English |
| Stroke | 50MM |
| Mold height | 170MM |
| Shut height | 80MM |
| Flat area | 690*660MM |
| Flat thickness | 30MM |
| Flexible board PCB punching machine assembly,Flex PCB punching machine prototype Power | 380/220V |
| Fuse | 3A |
| Composition | Punching machine, Air cylinder, Ottomans, etc |
