Product Details
Place of Origin: SuZhou
Brand Name: YUSH
Certification: CE
Model Number: YSPE-10T
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: plywood case
Payment Terms: T/T L/C paypal west union credit card
Supply Ability: 20sets/ month
High Quality Flex PCB Punching Machine Weight: |
580kg |
High Quality Flex PCB Punching Machine Accuracy:: |
± 0.05mm |
High Quality Flex PCB Punching Machine Working Noise:: |
≤60dB |
High Quality Flex PCB Punching Machine Work Schedule:: |
≥60mm |
High Quality Flex PCB Punching Machine Fabrication Stroke Speed:: |
8 ~ 15s Adjustable (without Plate Take Time) |
High Quality Flex PCB Punching Machine Fabrication The Use Of Voltage: |
220VAC |
High Quality Flex PCB Punching Machine Weight: |
580kg |
High Quality Flex PCB Punching Machine Accuracy:: |
± 0.05mm |
High Quality Flex PCB Punching Machine Working Noise:: |
≤60dB |
High Quality Flex PCB Punching Machine Work Schedule:: |
≥60mm |
High Quality Flex PCB Punching Machine Fabrication Stroke Speed:: |
8 ~ 15s Adjustable (without Plate Take Time) |
High Quality Flex PCB Punching Machine Fabrication The Use Of Voltage: |
220VAC |

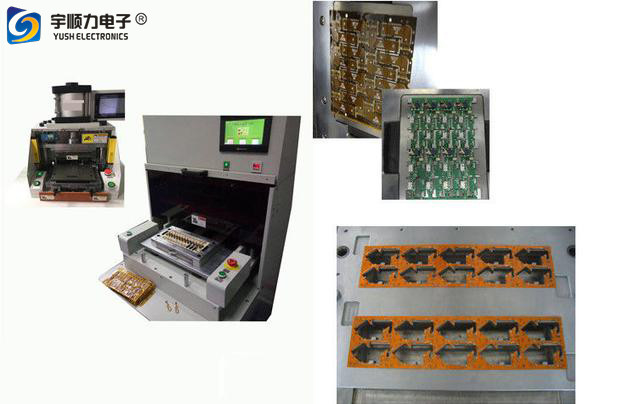

Features PCB punching machine fabrication from China,High quality flex PCB punching machine-YSPE-10T
1. PCB punching machine fabrication from China,High quality flex PCB punching machine by means of punching dies, to avoid micro-cracks caused by manual.
2. Die toolings is changeable
3. Easy set up of punching dies
4. Loading and unloading PCBs is convenient
5. Easy operation, has safe protection system
6. Air cylinder driven
Specifiction:
| Description | LED PCB punch machine |
| Model | PCB punching machine fabrication from China,High quality flex PCB punching machine-YSPE |
| Working area | 330*220mm |
| Working pressure | 0.45-0.7Mpa |
| Machine dimension | 730*810*1760mm |
| Cutting precision | ±0.05mm |
| Cycle time | 7.5s/cycle |
| Weight | 650KG |
| Output | 8T |
| PCB/FPC thickness | 0.08-3.5MM |
| PCB/FPC material | FPC, FR1, FR4, CEM-1, CEM-3, MCPCB |
| Cutting mode | Punching |
| Punch fixture | Die tooling(mold) |
| Working Property | LCD display, Automatically records the number of processed products, automatic punching |
| Transmission port | International standard |
| Instruction system | International standard instruction system |
| Operation Language | English |
| Stroke | 50MM |
| Mold height | 170MM |
| Shut height | 80MM |
| Flat area | 690*660MM |
| Flat thickness | 30MM |
| Power | 380/220V |
| Fuse | 3A |
| Composition | Punching machine, Air cylinder, Ottomans, etc |
