Flexible Circuit Board Punching Machine Oem Stroke Speed 8 To 15s Adjustable

Product Details

Place of Origin: SuZhou

Brand Name: YUSH

Certification: CE

Model Number: YSPE-10T

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: plywood case

Payment Terms: T/T L/C paypal west union credit card

Supply Ability: 20sets/ month

Get Best Price
High Light:

pcb production equipment

,

pcb punch

OEM Flexible Circuit Board Punching Machine Weight:
580kg
OEM Flexible Circuit Board Punching Machine Accuracy::
± 0.05mm
OEM Flexible Circuit Board Punching Machine Working Noise:
≤60dB
OEM Flexible Circuit Board Punching Machine Work Schedule::
≥60mm
Stroke Speed::
8 ~ 15s Adjustable (without Plate Take Time)
OEM Flexible Circuit Board Punching Machine Fabrication The Use Of Voltage:
220VAC
OEM Flexible Circuit Board Punching Machine Fabrication Plate Area:
330×220mm
Fpc PCB Punching Machine Fabrication Working Pressure:
0.50-0.70Mpa Dry Gas Source
Fpc PCB Punching Machine Fabrication Cylinder Return Mold Opening Force::
1.5T 4T 5T
OEM Flexible Circuit Board Punching Machine Weight:
580kg
OEM Flexible Circuit Board Punching Machine Accuracy::
± 0.05mm
OEM Flexible Circuit Board Punching Machine Working Noise:
≤60dB
OEM Flexible Circuit Board Punching Machine Work Schedule::
≥60mm
Stroke Speed::
8 ~ 15s Adjustable (without Plate Take Time)
OEM Flexible Circuit Board Punching Machine Fabrication The Use Of Voltage:
220VAC
OEM Flexible Circuit Board Punching Machine Fabrication Plate Area:
330×220mm
Fpc PCB Punching Machine Fabrication Working Pressure:
0.50-0.70Mpa Dry Gas Source
Fpc PCB Punching Machine Fabrication Cylinder Return Mold Opening Force::
1.5T 4T 5T
Flexible Circuit Board Punching Machine Oem Stroke Speed 8 To 15s Adjustable

OEM flexible circuit board Punching Machine,reliable quality fpc Punching Machine prototype-YSPE by means of punching dies, to avoid micro-cracks caused by manual. Features:
1.  Die toolings is changeable
2.  Easy set up of punching dies
3. Loading and unloading PCBs is convenient
4.  Easy operation, has safe protection system
5. Air cylinder driven

6. OEM flexible circuit board Punching Machine,reliable quality fpc Punching Machine prototype-YSPE by means of punching dies, to avoid micro-cracks caused by manual.

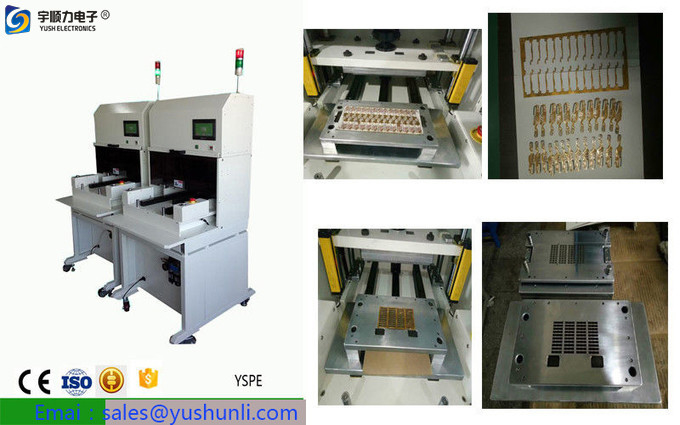

Flexible Circuit Board Punching Machine Oem  Stroke Speed 8 To 15s Adjustable 0



OEM flexible circuit board Punching Machine,reliable quality fpc Punching Machine prototype-YSPE Specifiction:



Description OEM flexible circuit board Punching Machine,reliable quality fpc Punching Machine prototype-YSPE
Model OEM flexible circuit board Punching Machine,reliable quality fpc Punching Machine prototype-YSPE
Working area 330*220mm
Working pressure 0.45-0.7Mpa
Machine dimension 730*810*1760mm
Cutting precision ±0.05mm
Cycle time 7.5s/cycle
Weight 650KG
Output 8T
PCB/FPC thickness 0.08-3.5MM
PCB/FPC material FPC, FR1, FR4, CEM-1, CEM-3, MCPCB
Cutting mode Punching
Punch fixture Die tooling(mold)
Working Property LCD display, Automatically records the number of processed products, automatic punching
Transmission port International standard
Instruction system International standard instruction system
Operation Language English
Stroke 50MM
Mold height 170MM
Shut height 80MM
Flat area 690*660MM
Flat thickness 30MM
Power 380/220V
Fuse 3A
Composition Punching machine, Air cylinder, Ottomans, etc
