Single Layer Pcb Punching Machine Flexible , Fpc Pcb Auto Punching Machine

Product Details

Place of Origin: SuZhou

Brand Name: YUSH

Certification: CE

Model Number: YSPE-10T

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: plywood case

Payment Terms: T/T L/C paypal west union credit card

Supply Ability: 20sets/ month

Get Best Price
High Light:

pcb production equipment

,

pcb punch

Fpc PCB Punching Machine Fabrication Stroke Speed:
8 ~ 15s Adjustable (without Plate Take Time)
Fpc PCB Punching Machine Fabrication The Use Of Voltage:
220VAC
Fpc PCB Punching Machine Fabrication Plate Area:
30×220mm
Fpc PCB Punching Machine Fabrication Working Pressure:
0.50-0.70Mpa Dry Gas Source
Fpc PCB Punching Machine Fabrication Cylinder Return Mold Opening Force:
1.5T 4T 5T
Fpc PCB Punching Machine Fabrication Force:
3T 8T 10T
Fpc PCB Punching Machine Fabrication Size::
820×740×1750mm
Fpc PCB Punching Machine Fabrication Stroke Speed:
8 ~ 15s Adjustable (without Plate Take Time)
Fpc PCB Punching Machine Fabrication The Use Of Voltage:
220VAC
Fpc PCB Punching Machine Fabrication Plate Area:
30×220mm
Fpc PCB Punching Machine Fabrication Working Pressure:
0.50-0.70Mpa Dry Gas Source
Fpc PCB Punching Machine Fabrication Cylinder Return Mold Opening Force:
1.5T 4T 5T
Fpc PCB Punching Machine Fabrication Force:
3T 8T 10T
Fpc PCB Punching Machine Fabrication Size::
820×740×1750mm
Single Layer Pcb Punching Machine Flexible , Fpc Pcb Auto Punching Machine

High quality single layer flexible PCB Punching Machine ,fpc PCB Punching Machine fabrication-YSPE Features:

1. Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual.
2. Die toolings is changeable
3. Easy set up of punching dies
4. Loading and unloading PCBs is convenient
5. Easy operation, has safe protection system
6. Air cylinder driven

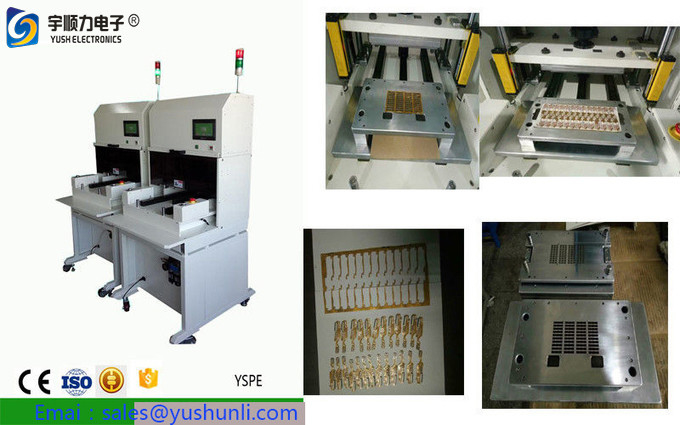

 Single Layer Pcb Punching Machine Flexible ,  Fpc Pcb Auto Punching Machine 0

Specifiction:High quality single layer flexible PCB Punching Machine ,fpc PCB Punching Machine fabrication-YSPE



Description High quality single layer flexible PCB Punching Machine ,fpc PCB Punching Machine fabrication-YSPE
Model YSPE-10T
Working area 330*220mm
Working pressure 0.45-0.7Mpa
Machine dimension 730*810*1760mm
Cutting precision ±0.05mm
Cycle time 7.5s/cycle
Weight 650KG
Output 8T
PCB/FPC thickness 0.08-3.5MM
PCB/FPC material FPC, FR1, FR4, CEM-1, CEM-3, MCPCB
Cutting mode Punching
Punch fixture Die tooling(mold)
Working Property LCD display, Automatically records the number of processed products, automatic punching
Transmission port International standard
Instruction system International standard instruction system
Operation Language English
Stroke 50MM
Mold height 170MM
Shut height 80MM
Flat area 690*660MM
Flat thickness 30MM
Power 380/220V
Fuse 3A
Composition Punching machine, Air cylinder, Ottomans, etc
