Fpc Automatic Die Punching Machine For Circuit Board Easy Set Up / Operation

Product Details

Place of Origin: SuZhou

Brand Name: YUSH

Certification: CE

Model Number: YSPE-10T

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: plywood case

Payment Terms: T/T L/C paypal west union credit card

Supply Ability: 20sets/ month

Get Best Price
High Light:

pcb drilling machine

,

pcb punch

FPC Punching Machine Weight:
580kg
FPC Punching Machine Working Accuracy::
± 0.05mm
FPC Punching Machine Working Noise::
≤60dB
FPC Punching Machine Work Schedule::
≥60mm
FPC Punching Machine Stroke Speed::
8 ~ 15s Adjustable (without Plate Take Time)
FPC Punching Machine The Use Of Voltage:
220VAC
FPC Punching Machine Weight:
580kg
FPC Punching Machine Working Accuracy::
± 0.05mm
FPC Punching Machine Working Noise::
≤60dB
FPC Punching Machine Work Schedule::
≥60mm
FPC Punching Machine Stroke Speed::
8 ~ 15s Adjustable (without Plate Take Time)
FPC Punching Machine The Use Of Voltage:
220VAC
Fpc Automatic Die Punching Machine For Circuit Board Easy Set Up / Operation

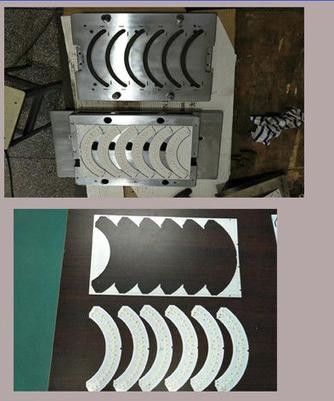

Fpc Automatic Die Punching Machine For Circuit Board Easy Set Up / Operation 0



FPC Punching Machine flexible circuit board prototype PCB punching machine manufacture with high quality-YSPE Features:

1. LED PCB punch machinE by means of punching dies, to avoid micro-cracks caused by manual.
2. Die toolings is changeable
3. Easy set up of punching dies
4. Loading and unloading PCBs is convenient
5. Easy operation, has safe protection system
6. Air cylinder driven

FPC Punching Machine flexible circuit board prototype PCB punching machine manufacture with high quality-YSPE Specifiction:



Description LED PCB punch machine
Model FPC Punching Machine flexible circuit board prototype PCB punching machine manufacture with high quality-YSPE
Working area 330*220mm
Working pressure 0.45-0.7Mpa
Machine dimension 730*810*1760mm
Cutting precision ±0.05mm
Cycle time 7.5s/cycle
Weight 650KG
Output 8T
PCB/FPC thickness 0.08-3.5MM
PCB/FPC material FPC, FR1, FR4,CEM-1, CEM-3, MCPCB
Cutting mode Punching
Punch fixture Die tooling(mold)
Working Property LCD display, Automatically records the number of processed products, automatic punching
Transmission port International standard
Instruction system International standard instruction system
Operation Language English
Stroke 50MM
Mold height 170MM
Shut height 80MM
Flat area 690*660MM
Flat thickness 30MM
Power 380/220V
Fuse 3A
Composition Punching machine, Air cylinder, Ottomans, etc
