Pneumatic Pulse Heat Hot Bar Soldering Equipment For FFC / FCB YSPC-1A

Product Details

Place of Origin: Jiangsu

Brand Name: YUSH

Certification: CE

Model Number: YSPP-1A

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 1000

Packaging Details: Wooden case

Payment Terms: D/P, D/A, L/C, T/T

Supply Ability: 100/ month

Get Best Price
High Light:

pcb separator machine

,

pcb depaneling equipment

Work Area:
200mm X 260mm
Work Air Pressure:
0.5-0.7MPA
Time Of Pressing:
0-99s
Tolerance Of Temperature:
±2℃
Power:
AC220V + 10% 50HZ, 2000W
Size::
620mm X 690mm X 570mm
Temperature Setting::
Room Temperature ~500 C Error + 5 C
Hot Pressing Time::
1~99s
Work Area:
200mm X 260mm
Work Air Pressure:
0.5-0.7MPA
Time Of Pressing:
0-99s
Tolerance Of Temperature:
±2℃
Power:
AC220V + 10% 50HZ, 2000W
Size::
620mm X 690mm X 570mm
Temperature Setting::
Room Temperature ~500 C Error + 5 C
Hot Pressing Time::
1~99s
Pneumatic Pulse Heat Hot Bar Soldering Equipment For FFC / FCB YSPC-1A

Pneumatic Pulse Heat Soldering /Hot Bar Welding Machine for FFC to FCB



Features:

1. FFC TO PCB programmable pressure switch for precise force control.
2. Closed Loop PID temperature control with visible LCD display.
3. Each heating cycle is triggered by a real time pressure sensor.
4. Silicon rubber can be fitted in bonding Heat Seal Connectors between FFC and PCB.
5. Parts registration is adjusted by micrometer and secured by vacuum lock.
Optional CCD system for fine pitch component.
6. Standard workpiece holder is mounted on a linear guideway and designed to allow for easy changeover and repeatable operation.
7. Floating thermode ensures consistent pressure and heat transfer between thermode head and the parts to be joined.

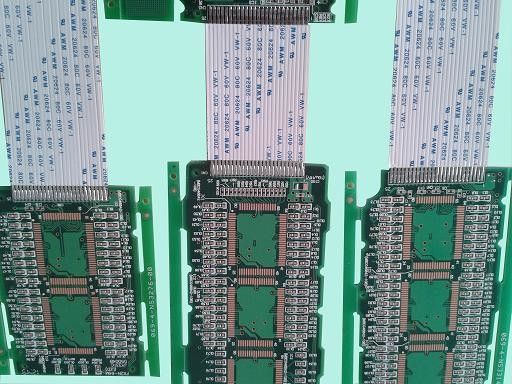

Pneumatic Pulse Heat Hot Bar Soldering Equipment For FFC / FCB YSPC-1A 0



Specifications:



Model YSPP-1A
Air pressing (MPa) 0.45~0.7
Working area (mm) 200x260
Size (MM) 500*750*640
Weight (Kg) 90
Guarantee 1 Year
Delivery 1 Day
Min. Order 1 Set
Ability 1000 Sets


Technical characteristics:


1. Structural precision, the load evenly, to eliminate internal stress



2. Safe, easy to operate



3. Electronic component won't short circuit



Detailed Product Description:


1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)



2. Mold make of SKD-11 Steel,Blade is SKD-9(From Japan),Rigorous Job



Pneumatic Pulse Heat Hot Bar Soldering Equipment For FFC / FCB YSPC-1A 1



Our Best Service:



1. Engineer overseas tranning for customers.

2. Promise day technical support services.

3. Limit the handling of complaints, half an hour back to customers.

4. Reliable machine maker,we get Experts--15,each one got over six years experience,equipment quality will be satisfying.
