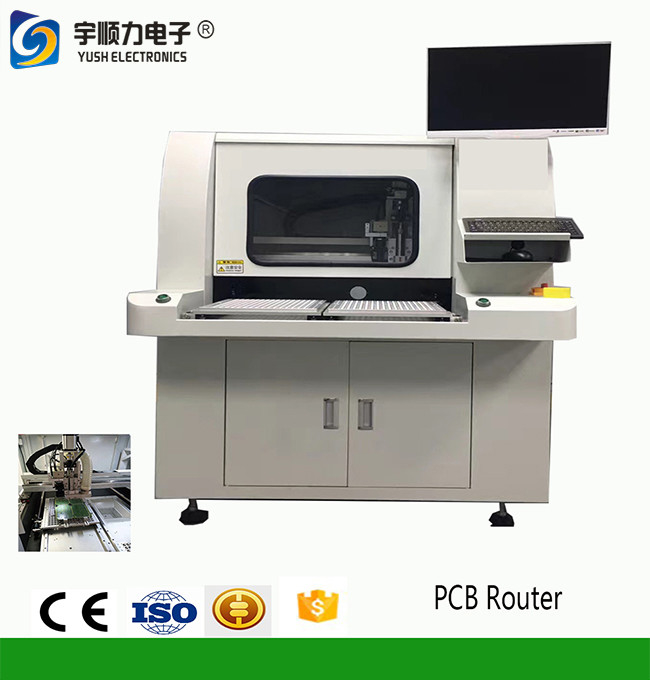

KAVO Spindle PCB Depaneling Router For SMT Pcb Boards / LED Alum Boards

China KAVO Spindle PCB Depaneling Router For SMT Pcb Boards / LED Alum Boards supplier
KAVO Spindle PCB Depaneling Router For SMT Pcb Boards / LED Alum Boards supplier KAVO Spindle PCB Depaneling Router For SMT Pcb Boards / LED Alum Boards supplier KAVO Spindle PCB Depaneling Router For SMT Pcb Boards / LED Alum Boards supplier

Large Image :  KAVO Spindle PCB Depaneling Router For SMT Pcb Boards / LED Alum Boards

Product Details:

Place of Origin: Jiangsu
Brand Name: YUSH
Certification: CE
Model Number: YSVC-450

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1000
Packaging Details: Wooden case
Payment Terms: D/P, D/A, L/C, T/T
Supply Ability: 100/ month
Contact Now
Detailed Product Description
PCB Thickness:: 0.4-6mm PCB Material:: LED ,PCB ,FR4
Cutting Accuracy:: ±0.5mm Transmission Speed:: 1500mm/s(max)/adjustable

High Driving Speed 60000mm/ min Durable Table CNC PCB Router Machine

1. Parts List


I. Hardware
SPINDLEKAVO spindle
CCDSony 520 line industrial cameras
LENSComputar EX2C
ScrewTBI Precision ground ball screw imports
GuideHIWIN widening Imported linear guide rail
MOTORJiaBao LCF Series
I/O CONTRONL CARDHFC PCI-9074
DRIVER CONTRONL CARDHFC PCI-9074
I/O CARDPCI-9074-64pcs/-38pcs
Static cleanupSTATIC-ST401A Series
Computer(RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G)
Machine interfaceAOC LCD17",Logitech mouse
2. software
Control systemWindows XP Professional (Service3,v.3244)
Operation GUIEnglish Windows XP
Program editInline
Vision systemCCD AOTU offset
Control systemF 1.2.88 version


2. Parameters


Overall
Dimensions(W*D*H)1370mm*1650mm*1450mm
Weight650KG
Height offset60~110mm
Manipulator
Motor typeJiaBao series
Positioning repeatability0.001mm
Axis working area(max)830mm*580mm*50mm
Work station
PCB fixationstandard,specialization
PCB loading/unloadingmanual
PCB size (max)320*320mm
PCB thick (max)5mm
Fixturing
Rigidity fixturingUse client fixture
Fixturing fixationmachinery
Spindle Motor
Power150W
Spindle60000rpm/min
Protectself/wind cooling
Change cutterSpecialization
Routing capability
Cutting speed(max.)80mm/s
Driving speed(max.)2500mm/s
Precision of cutting0.01mm
Vacuum System
Vacuum power3.5KW AC 380V
Vacuumplumb
Utilities
Power2.0KW AC380V
Air supply4-6KG/cm2
Programming
Program editInline
Function editLine,arc,circula,U-curve
Program storageHDD
Vision systemSONE colour CCD
milling cutter offsetAUTO
Vacuum setupAUTO
Operation Monitors
IindicatorIindicator Machine state
tool checkAutomatic detection tool life, the use of time testing
Motor protectHave overheating, overload, low voltage protection function
motor over loading checkHave Overload, the line is normal, low voltage protection function
Tool usable timeAutomatic detection tool life,
Data statisticSeparate board model, separating count, diverse counting methods
Error recordSoftware automatically records all alarms memory of machines
III. Accuracy
Axis precision0.001mm
Cutting precision0.1mm
IV. Safety
Working area protectWith four sealed protection
Door sensorFront and rear safety door micro-switch sensor (optional)
Exigency stop button


3. Advantages:

1. Using double slide into place device, reduce the cutting waiting times, increase production capacity.
2. Avoid artificial flap caused by the cracking of tin and part damage and other issues.
3. Avoid using blunt or fold, produced by mechanical stress.
4. Suitable for the finished plate arc and line cutting.
5. Suitable for small pieces of the final cutting, base plate of a mobile phone, PDA, PC interface card and so on.
