Product Details
Place of Origin: GuangDong
Brand Name: YUSHUNLI
Certification: CE Mark
Model Number: SP600
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: business negotiation/ USD 4200-10000 piece
Packaging Details: plywooden package
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 30 Set/Sets per Month
Precision: |
±0.01mm |
Power Requirements: |
1PAC220V 50/60HZ |
Print Speed: |
0-8000mm/min |
Dimension: |
1400*800*1680mm |
PCB Thickness: |
0.2-2.0mm |
PCB Size: |
250×550mm |
Weight: |
300KG |
Precision: |
±0.01mm |
Power Requirements: |
1PAC220V 50/60HZ |
Print Speed: |
0-8000mm/min |
Dimension: |
1400*800*1680mm |
PCB Thickness: |
0.2-2.0mm |
PCB Size: |
250×550mm |
Weight: |
300KG |

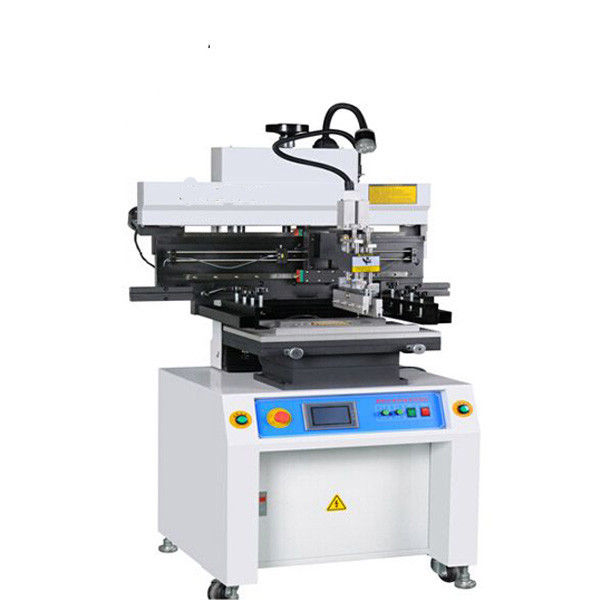

Semi-auto solder paste printer
Feature:
1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.
2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
3.Block can be adjusted before and after the blade, to choose the right printing position.
4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
6.Can be set to one-way and two-way, a variety of printing methods.
7.With the automatic counting function to facilitate the production of output statistics.
8.Adjustable blade angle, steel blade, rubber scraper are suitable.
9.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
10.Printing speed display, can be adjusted.
Specifications:
| Model | Yush SP600 |
| Dimensions | 1400*800*1680mm |
| Platform size | 300×600mm |
| PCB size | 250×550mm |
| Template size | 550×830mm |
| Printing speed | 0-8000mm/min |
| PCB thickness | 0-50mm |
| PCB fine tuning range | Front/side±10mm |
| Power supply | 1PAC220V 50/60HZ |
| Platform height | 850±20mm |
| Repeatability precision | ±0.01mm |
| Positioning mode | Outside/Reference hole |
| Weight | Approx.300Kg |
